J-Tech Digital HDMI 2.0 Splitter 1x8 MRO 18Gbps
- Manufacturer
- J-Tech Digital
- SKU
- JTD-366
- Model Number
- JTECH-18GSP18M
- Last Updated On
- about 1 year ago
Images
Product Overview
Product Dimension

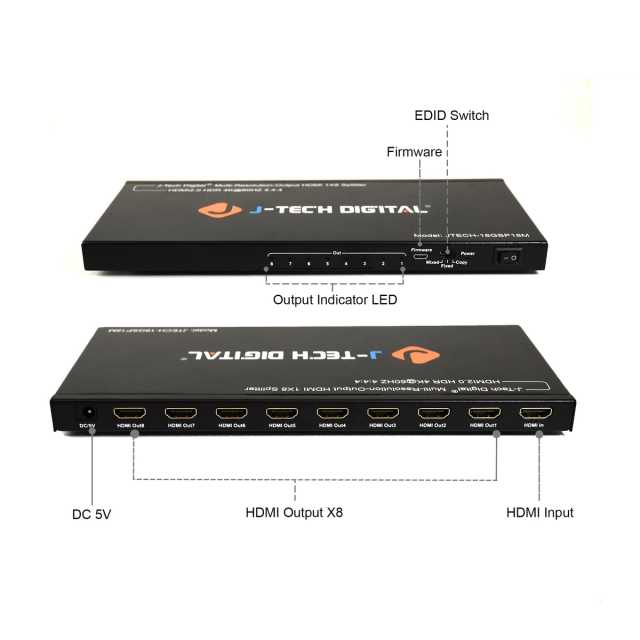

Product Interface
Feature
Feature
Feature
Package List
Resources
| Category | Name | Version | Size | Format |
|---|---|---|---|---|
Manual
| User Manual | 1.0 | 1.83 MB | |
Driver
| Control 4 Driver | 3.0 | 41.7 kB | zip |
Specifications
Video
- Ports
- 1 x HDMI Input8 x HDMI Outputs
- Resolution
- Up to 4K 60Hz YUV 4:4:4
- Video Protocols
- HDMI 2.0HDCP 2.2
- Bandwidth
- 18Gbps
- Transmission Distance
- 49ft. over standard HDMI 26AWG cable
General
- Operating Temperature
- 23°F ~ 104°F
- Humidity Range
- 5 - 90% RH (No Condensation)

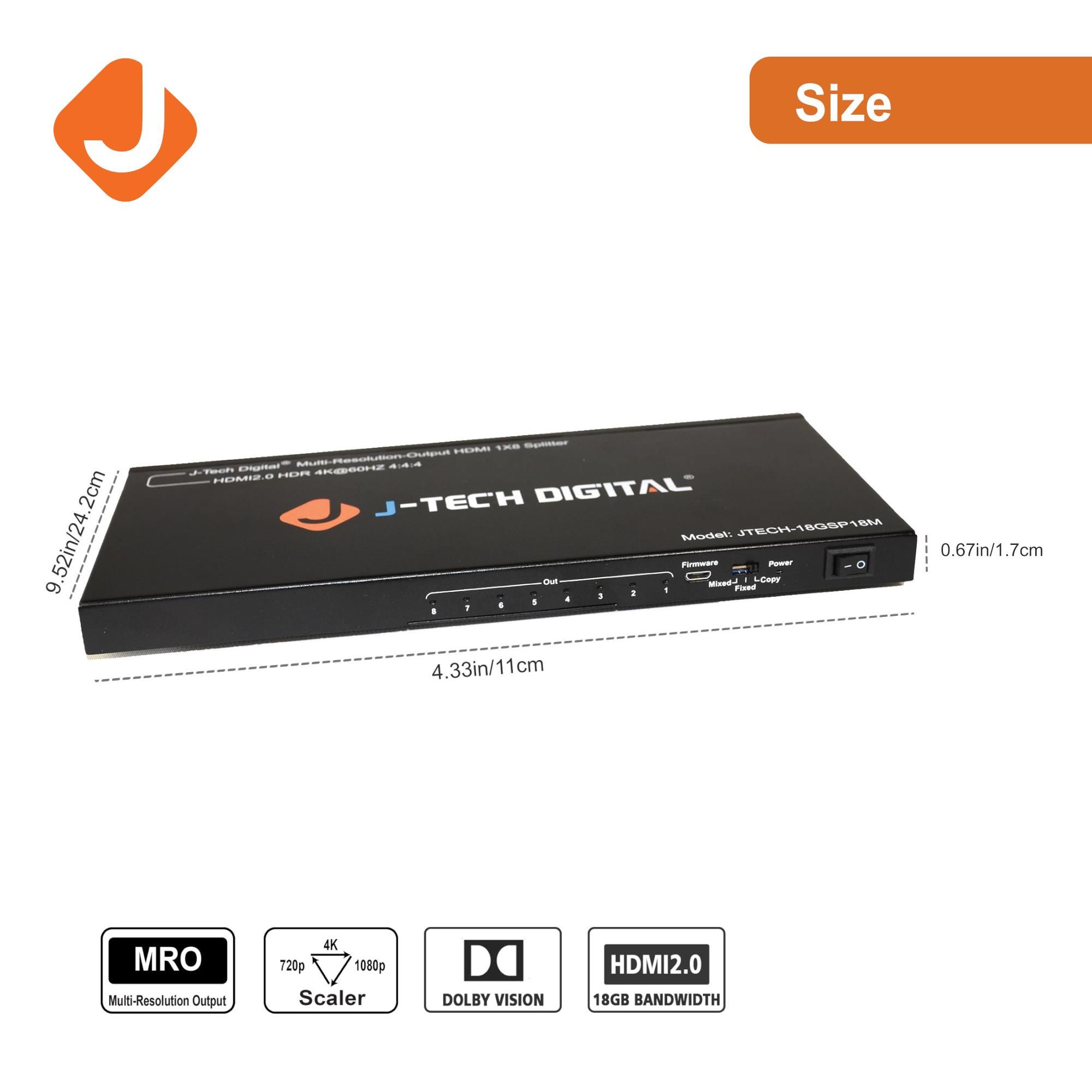

- Dimensions
- 247.2mm x 110mm x 17mm9.73" x 4.33" x 0.67"
- Weight
- 1.34lbs
- Power Consumption
- 5W (Max)
Frequently asked questions
- What EDID modes does JTD-366 Splitter support?

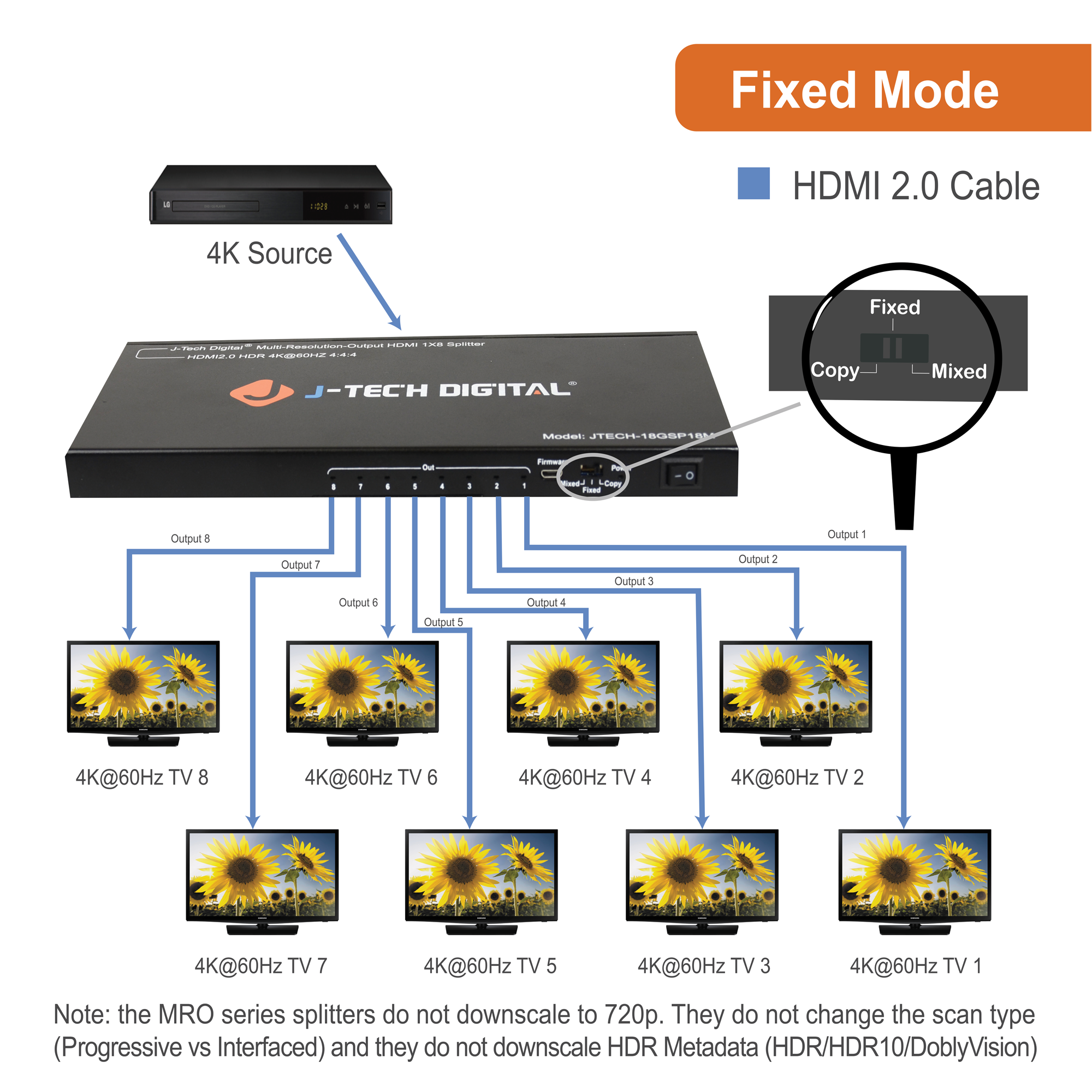

- Mixed EDID Mode- Always Follow the lowest resolution of the displays connected to 8 outputs in order to support all displays show the source. Auto EDID Mode- Default 4K@60Hz Copy EDID Mode- Output 8 is priority port, when output 8 is connected to one display, other display which connected to other outputs will follow the resolution of output 8.

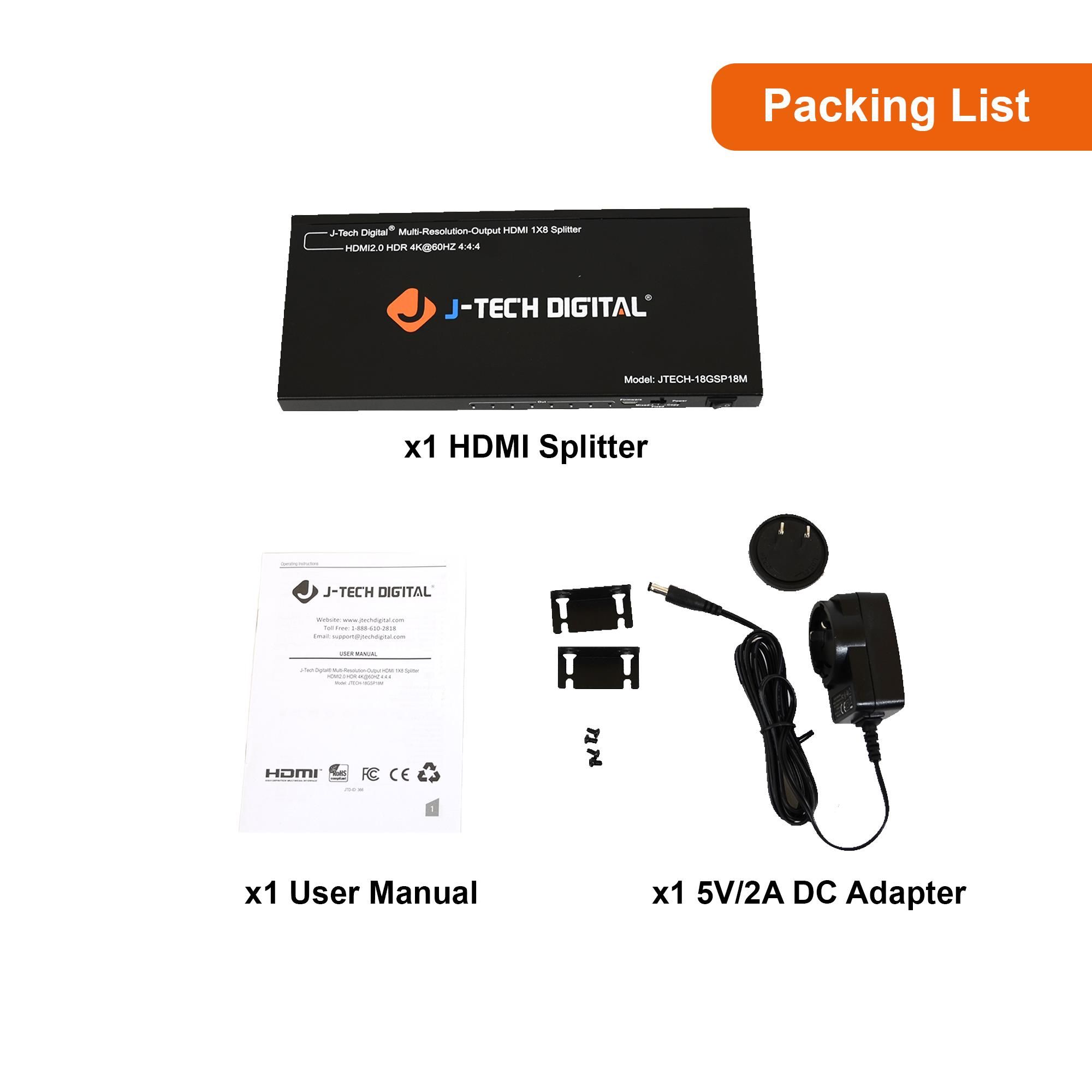

Package Contents
- 1 x HDMI Splitter
- 1 x 5V/2A DC Adapter
- 1 x User Manual
Features

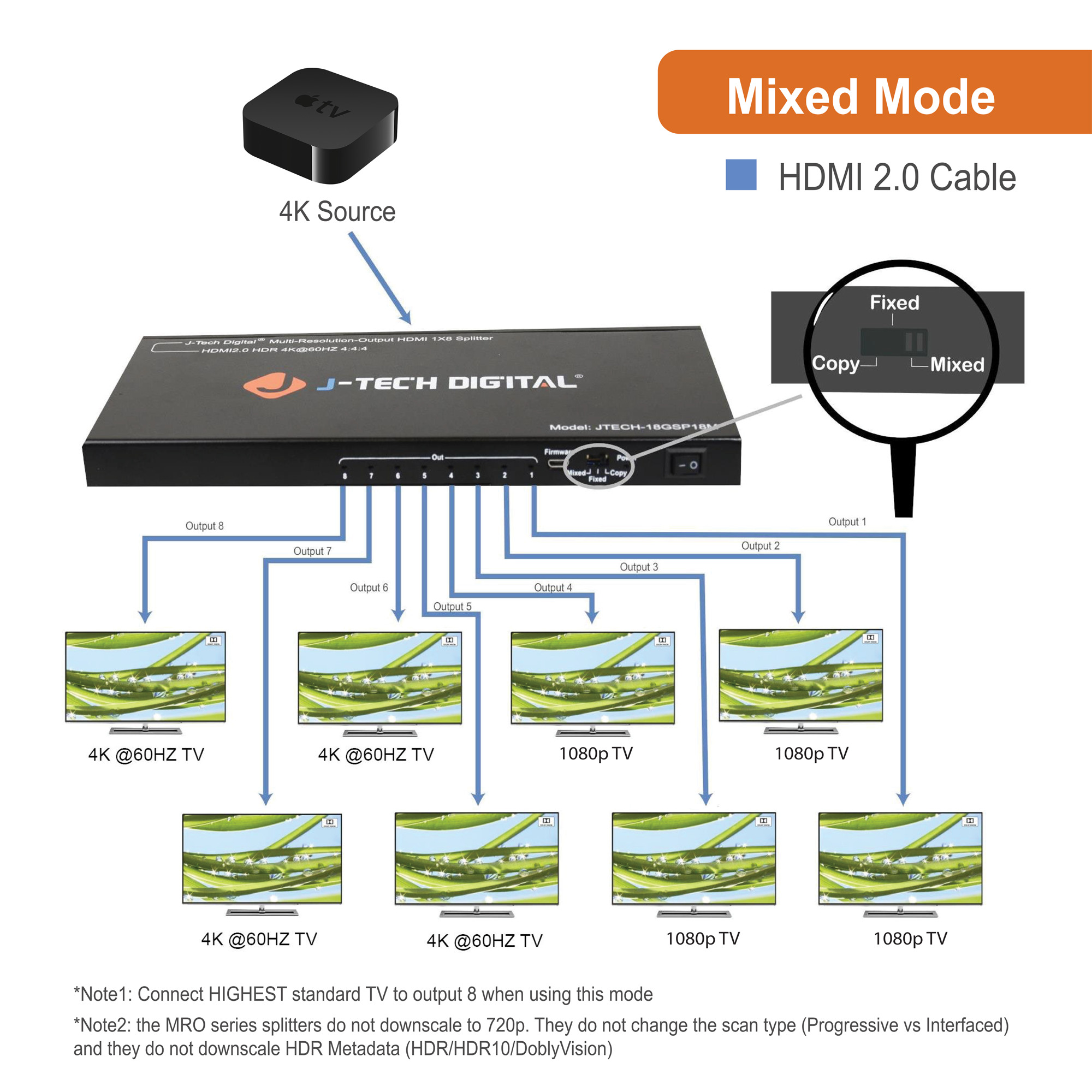

- MIX DIFFERENT DISPLAY STANDARDS: This device is an MRO (Multi-Resolution Output) Splitter, and works as a scaler, supporting multiple or mixed resolutions, allowing for the combination of SD TVs (720p & 1080p) with 4K@60Hz TVs. *Note* Connect HIGHEST TV Standard to Output 8 and set EDID to “Mixed” mode to use the MRO/Scaler function.
- HDMI 2.0 STANDARD HDR & EDID COPY ABILITIES: This MRO splitter supports 18Gbps bandwidth, HDR10 and Dolby Vision. It is compatible with 4K@60Hz 4:4:4 as well as 720p and 1080p. NOTE: Source Devices and all connected TVs MUST support Dolby Vision/HDR10 in order to experience the quality and image that Dolby Vision/HDR10 offer.
- 1 INPUT TO 8 OUTPUTS: This device distributes 1 HDMI signal to 8 HD displays simultaneously and is compatible with devices such as a PS4 Pro, Xbox One S, Roku 4, 4K Apple TV, Set-Top-Box, Blu-ray player and more.
- HIGH DEFINITION AUDIO: This splitter will pass HD audio formats from your source, such as: PCM, LPCM 7.1, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.
- FREE LIFE-TIME SUPPORT: All J-Tech Digital Products include a One-Year Manufacturer Warranty and free lifetime technical support from our Customer Support Team located in Houston, Texas – Available M-F 9AM-6PM CST. Contact us by (888) 610-2818 OR support@jtechdigital.com.
