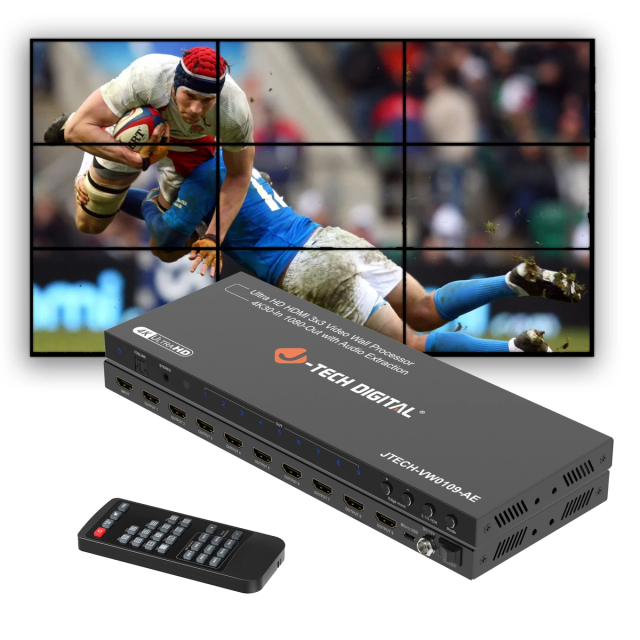

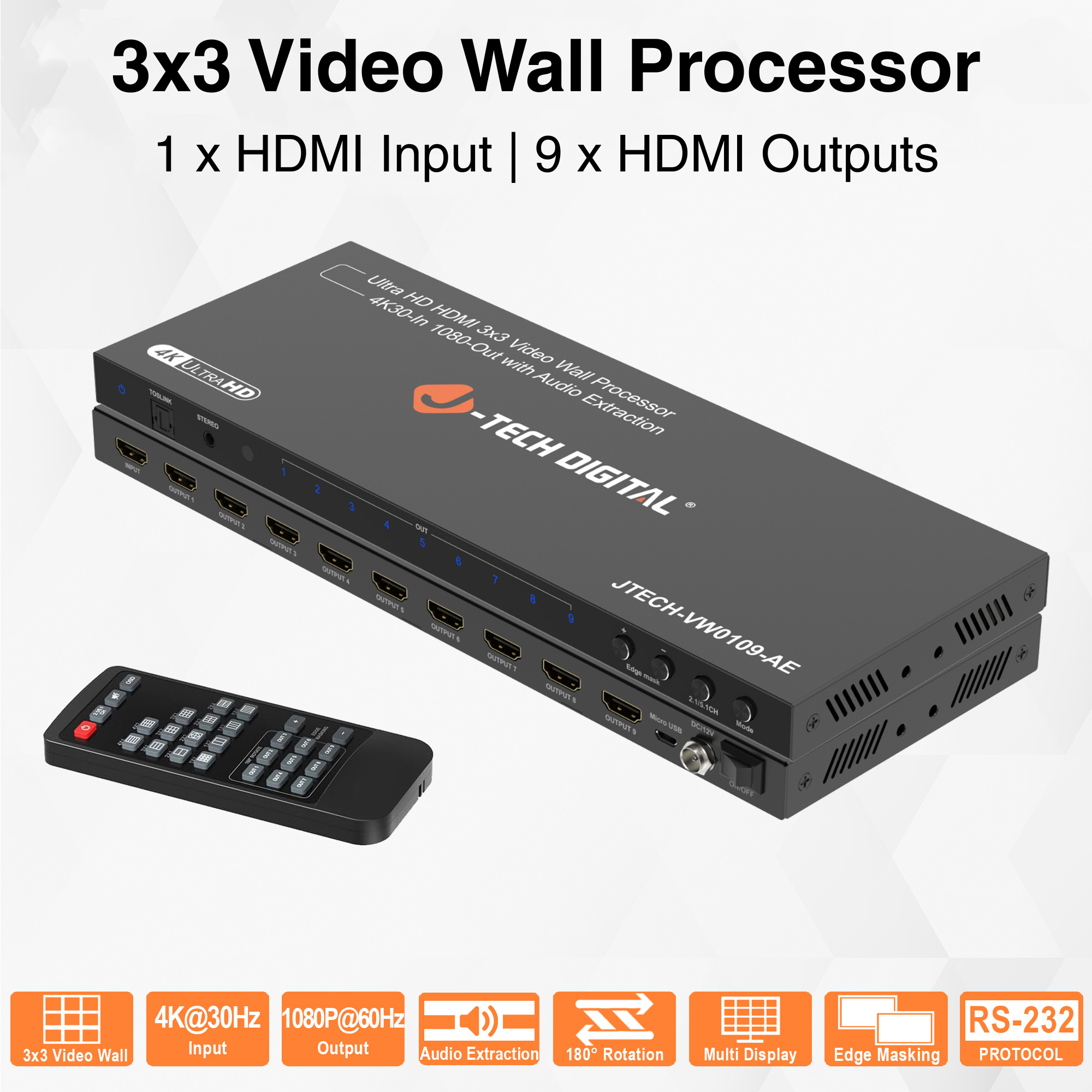

J-Tech Digital 3x3 Video Wall Processor (4K30 In 1080P Out) with Audio Extraction

Images

Product Overview

Feature

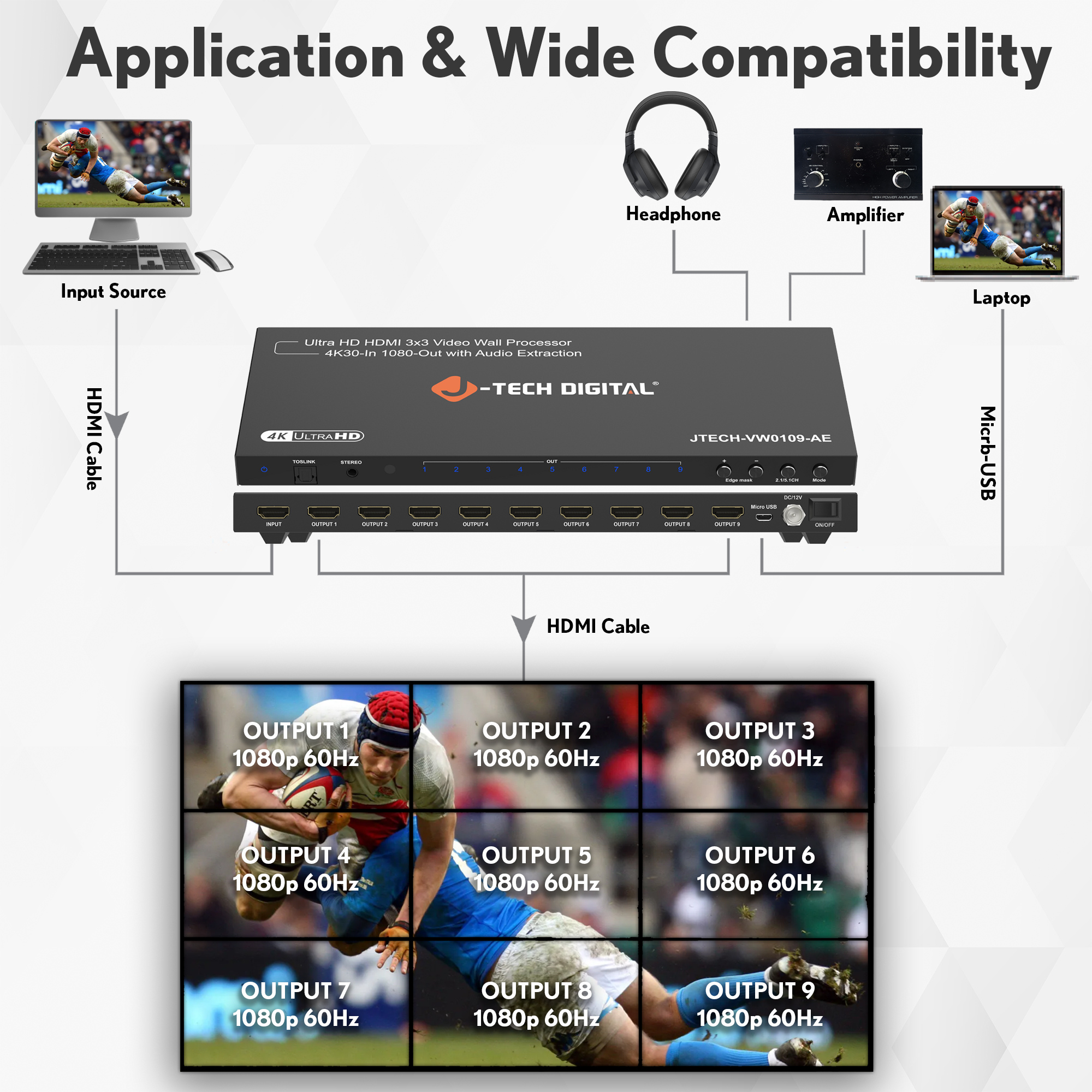

Application

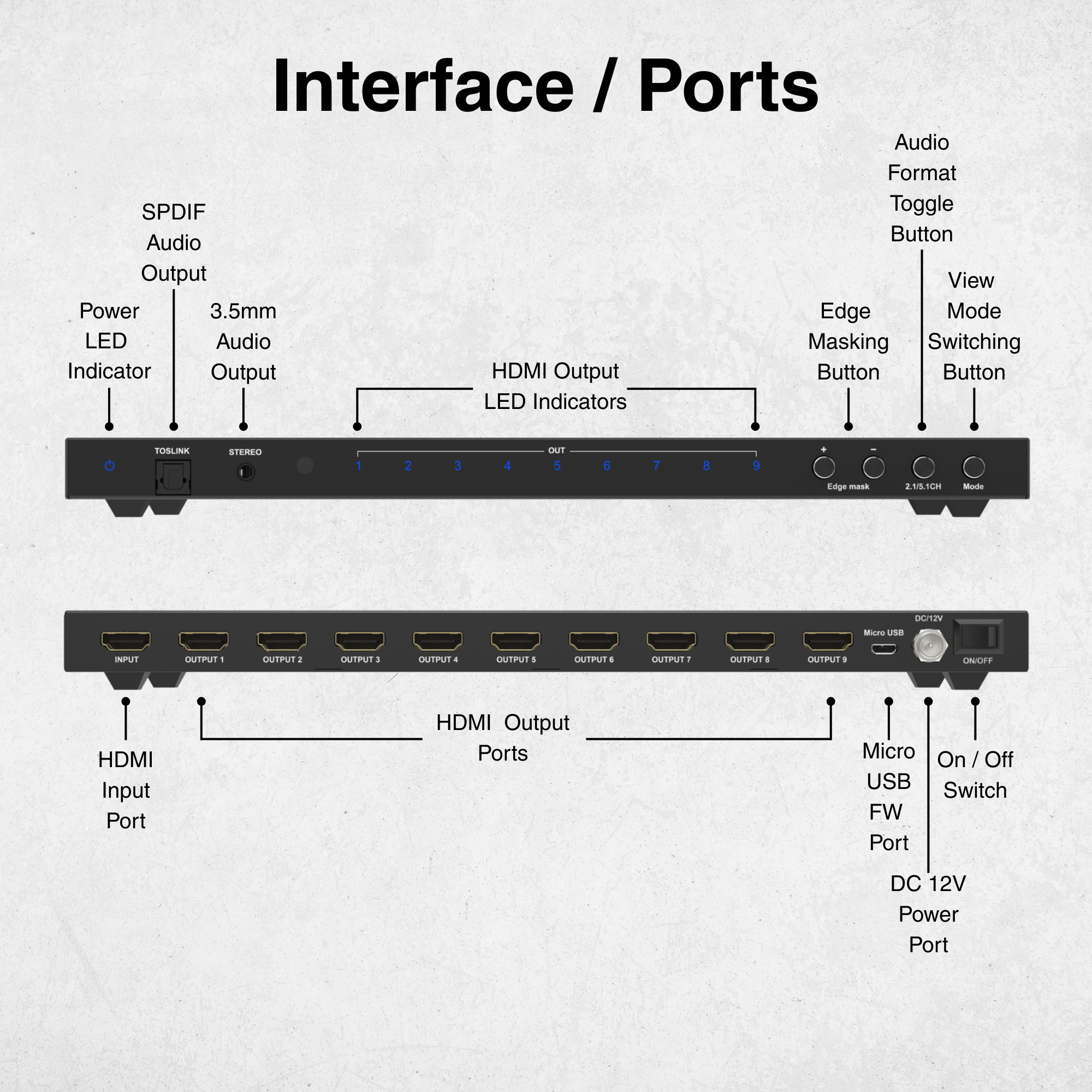

Product Interface

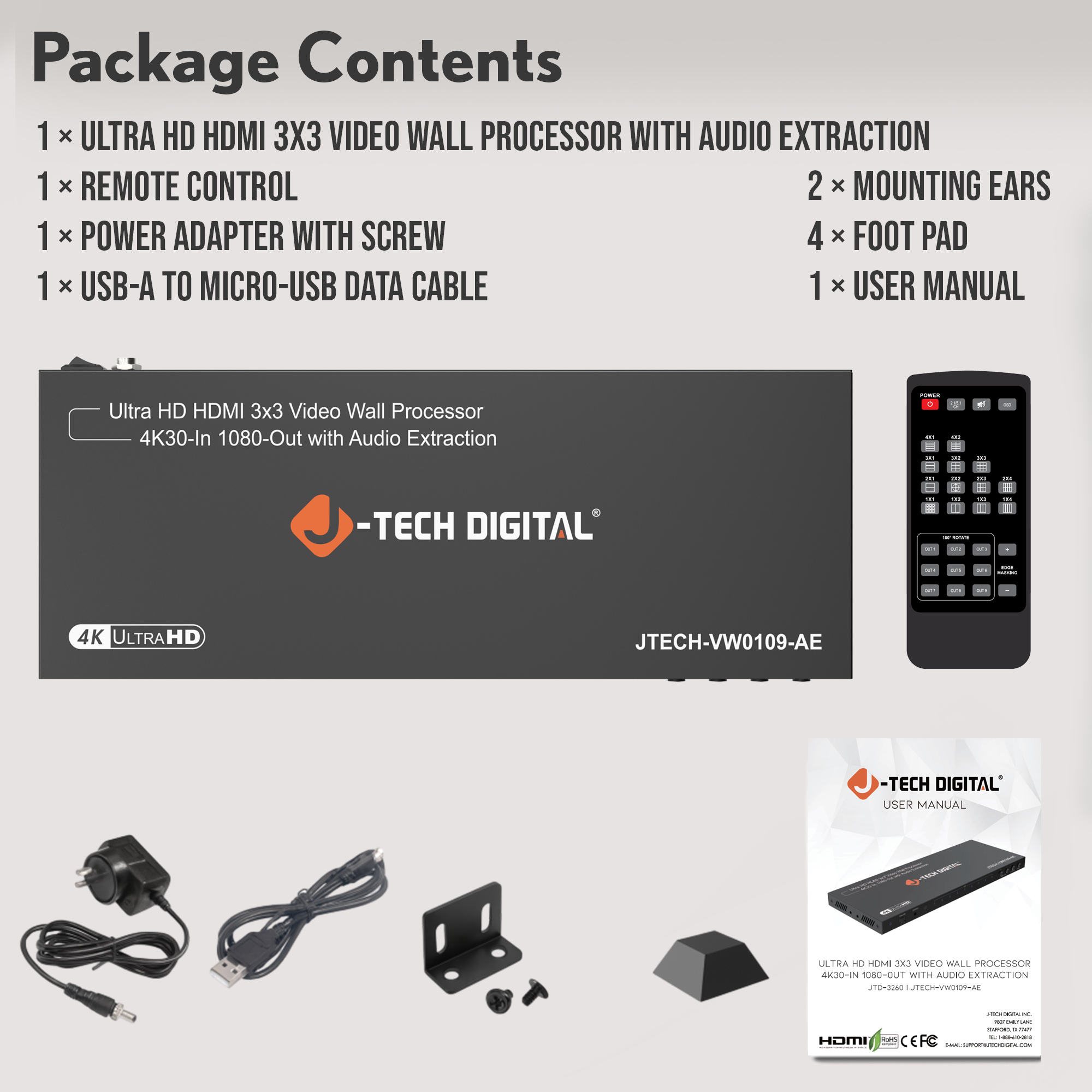

Package List

Category	Name	Version	Size	Format
Manual Name User Manual v1.0	User Manual	1.0	1.91 MB	pdf

General

Input Ports: 1 x HDMI
Output Ports: 8 x HDMI, 1 x 3.5mm, 1 x SPDIF Optical
Vertical Frequency Range: 24 / 25 / 30 / 50 / 60Hz
Video Amplifier Bandwidth: 3.4Gbps / 340MHz per channel (10.2Gbps all channel)
Interlaced (50 & 60Hz): 480i, 576i, 1080i
Progressive (50 & 60Hz): 480p, 576p, 720p, 1080P, 4K@24 / 25 / 30
Operating Temperature: 0° ~ 70°C
Storage Humidity: 5% to 90% RH non-condensation
Power Supply: 12V DC 1A
Power Consumption: 6W (Max)
Dimensions: 290.8 x 110.5 x 19 (mm)
Net Weight: 615g

4K 3x3 Video Wall Processor: Combine up to 9 HDMI displays into one seamless video wall. Supports 4K@30Hz input and 1080P outputs.

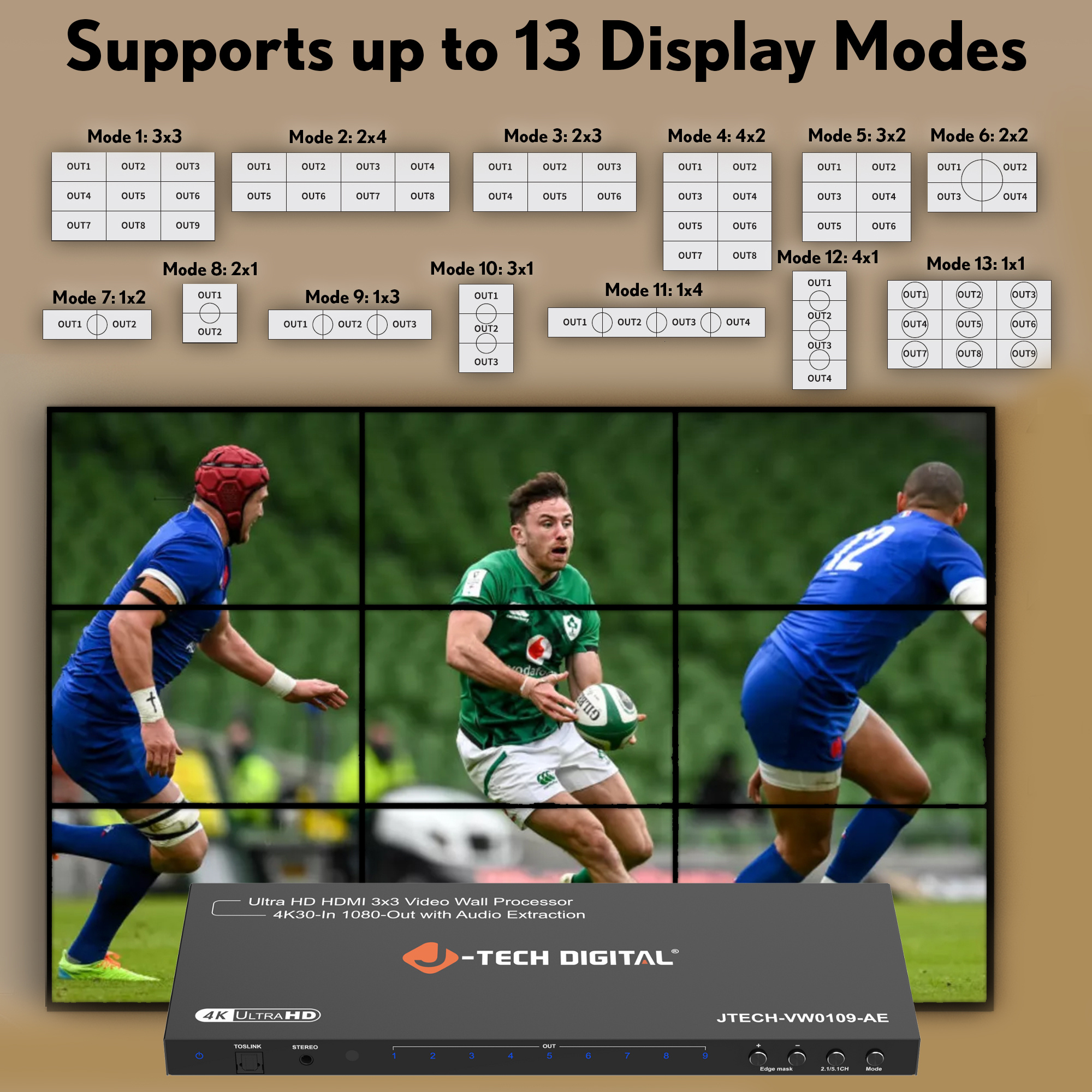

13 Display Modes Video Wall Controller: Toggle between 13 different display modes based on your setup, including 3x3, 2x2, 1x1 (Splitter mode), 2x4, 2x3, 4x2, 3x2, 1x2, 2x1, 1x3, 3x1, 1x4, 4x1

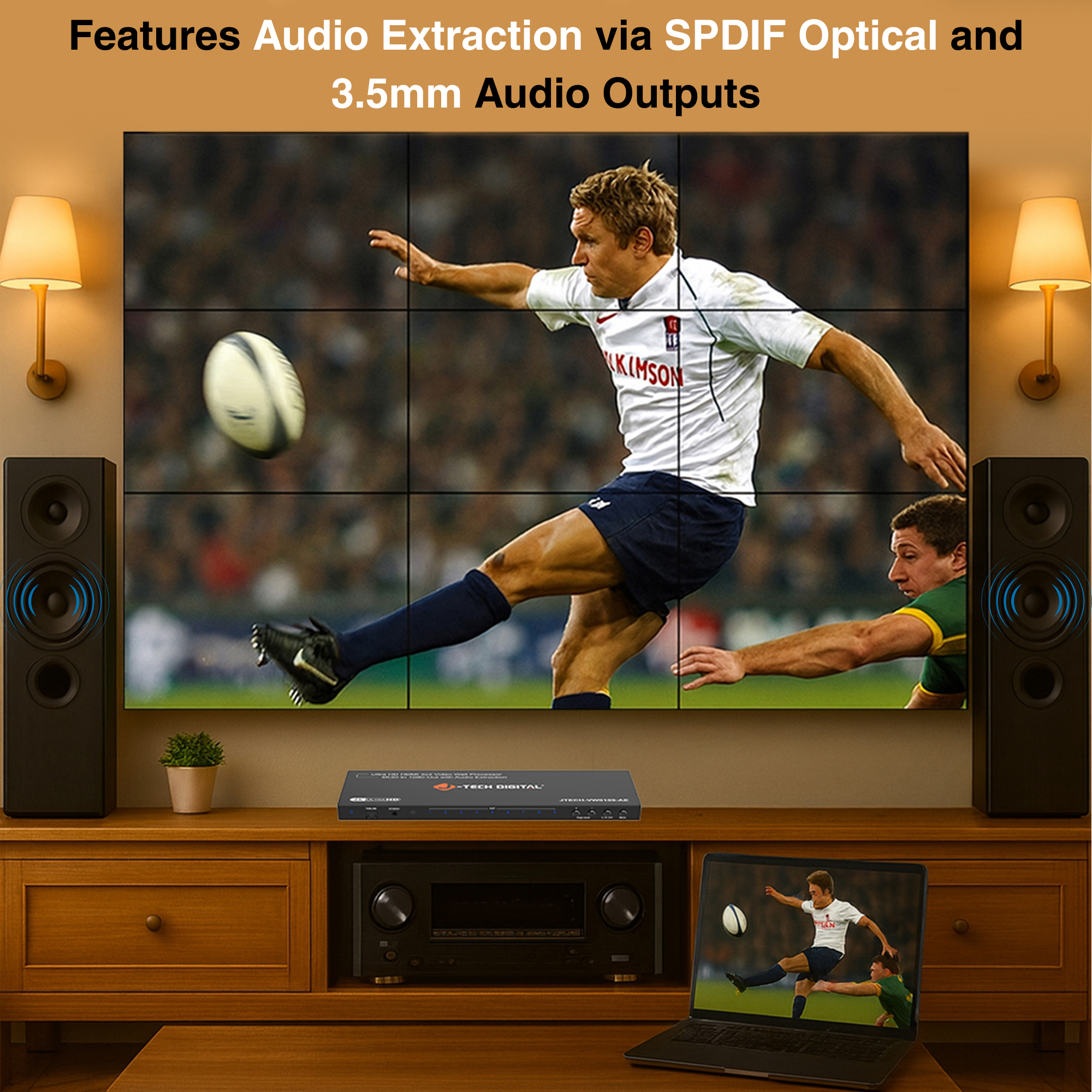

Audio Extraction Function: Route the audio from your source device to an external sound system via SPDIF Optical (5ch) and 3.5mm (2ch) audio output ports.

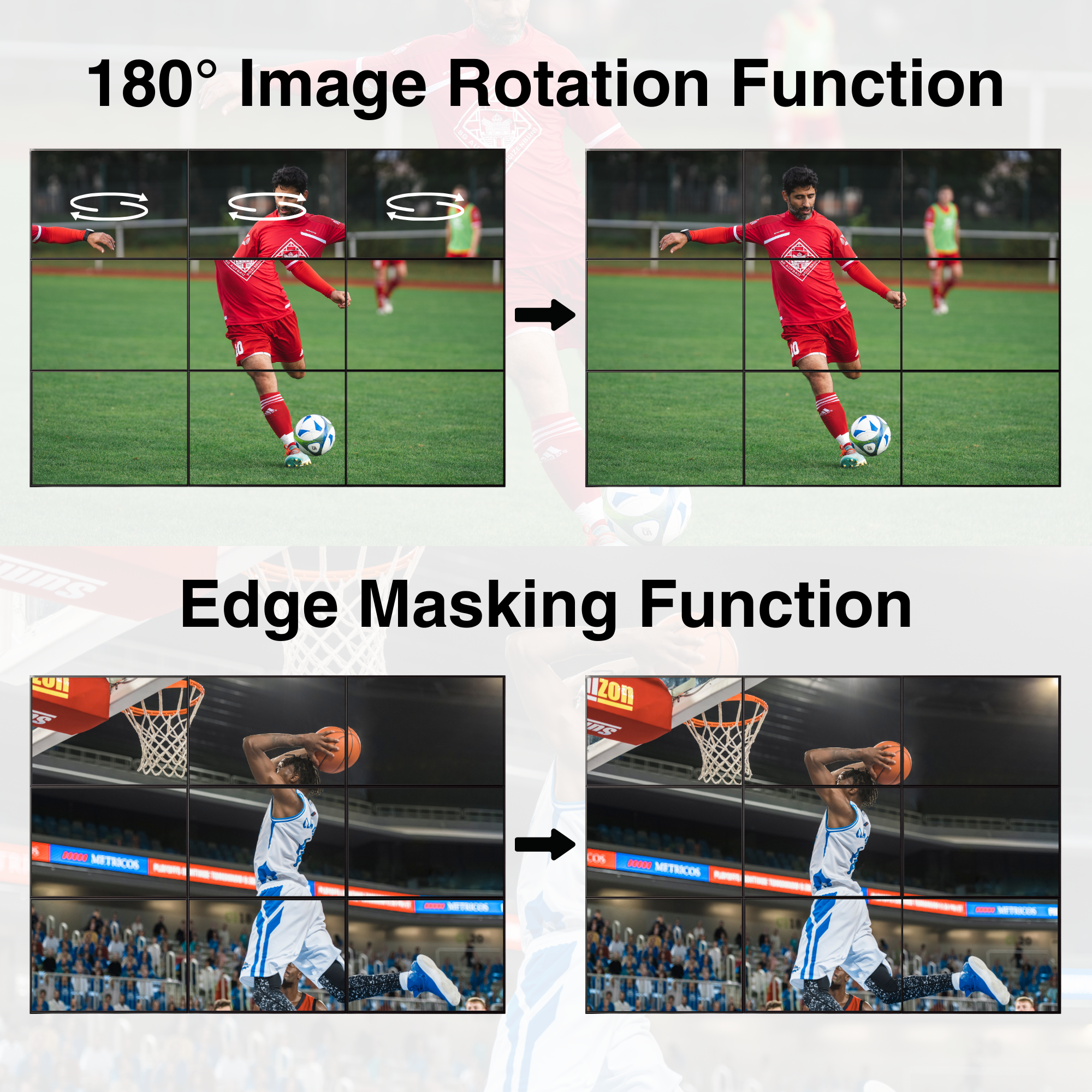

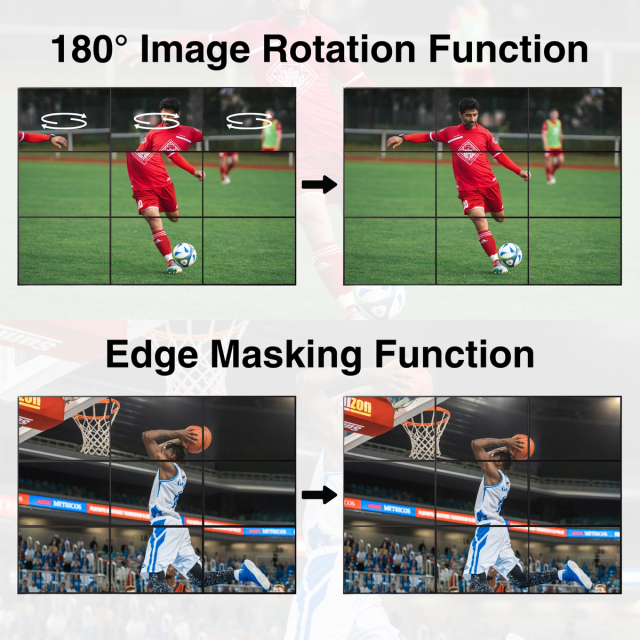

Image Rotation and Edge Masking Function: Rotate each screen up to 180° (Modes 1–12) for perfect alignment and minimal bezel gaps. Fine-tune the display with edge masking, adjusting up to 8 pixels to eliminate distortion and ensure a seamless video wall.
Note: 1×1 splitter mode does not support rotation or edge masking.
