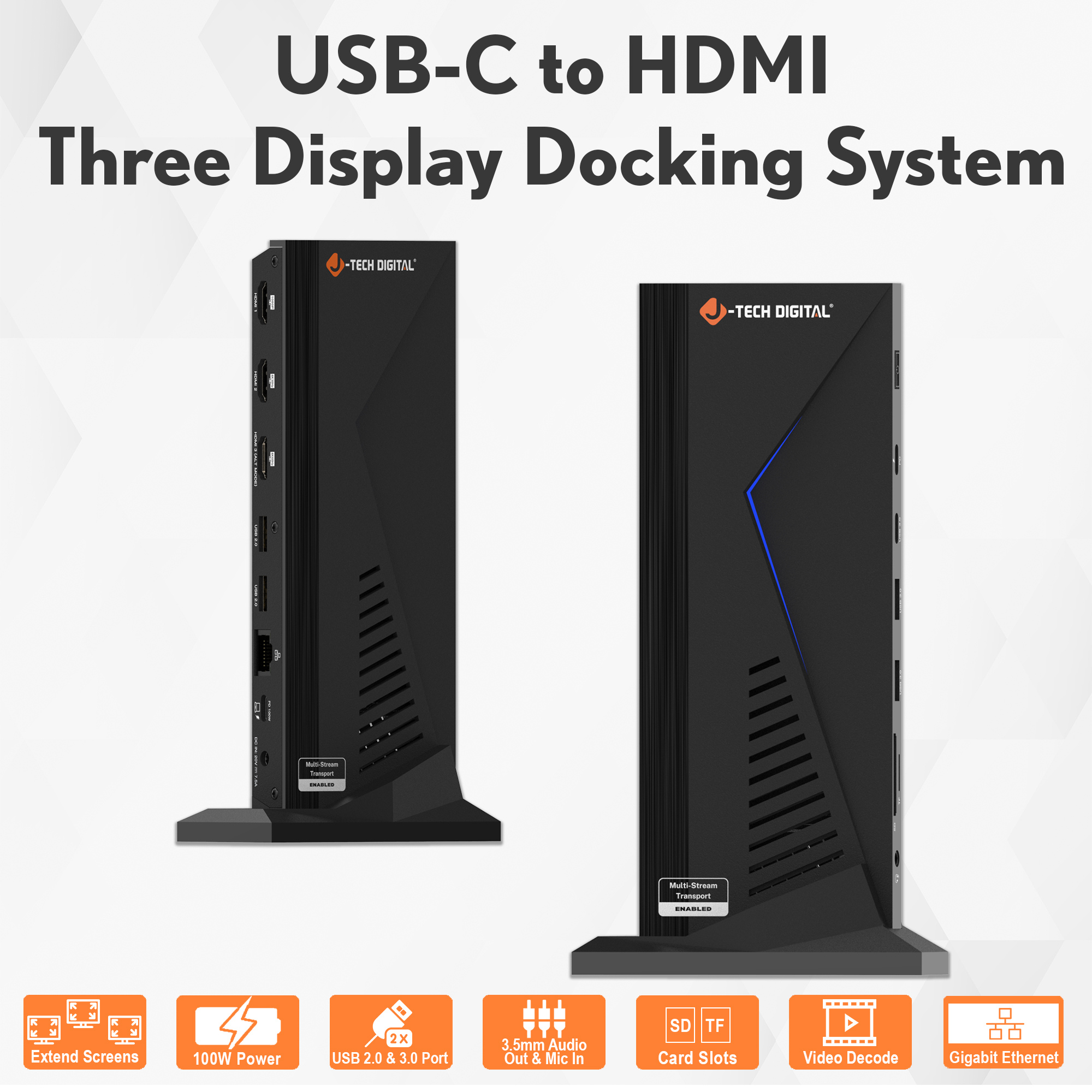

J-Tech Digital 14-in-1 USB-C to HDMI Triple Display Docking Station – Up to 4K 60Hz

Images

Product Overview

Feature

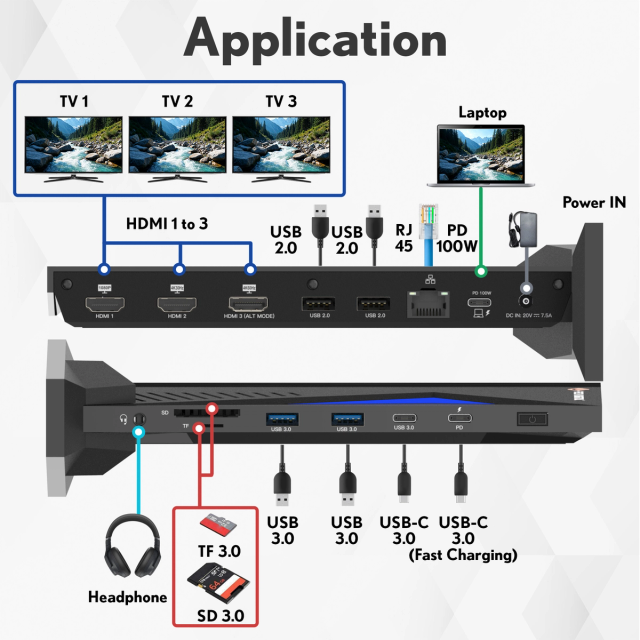

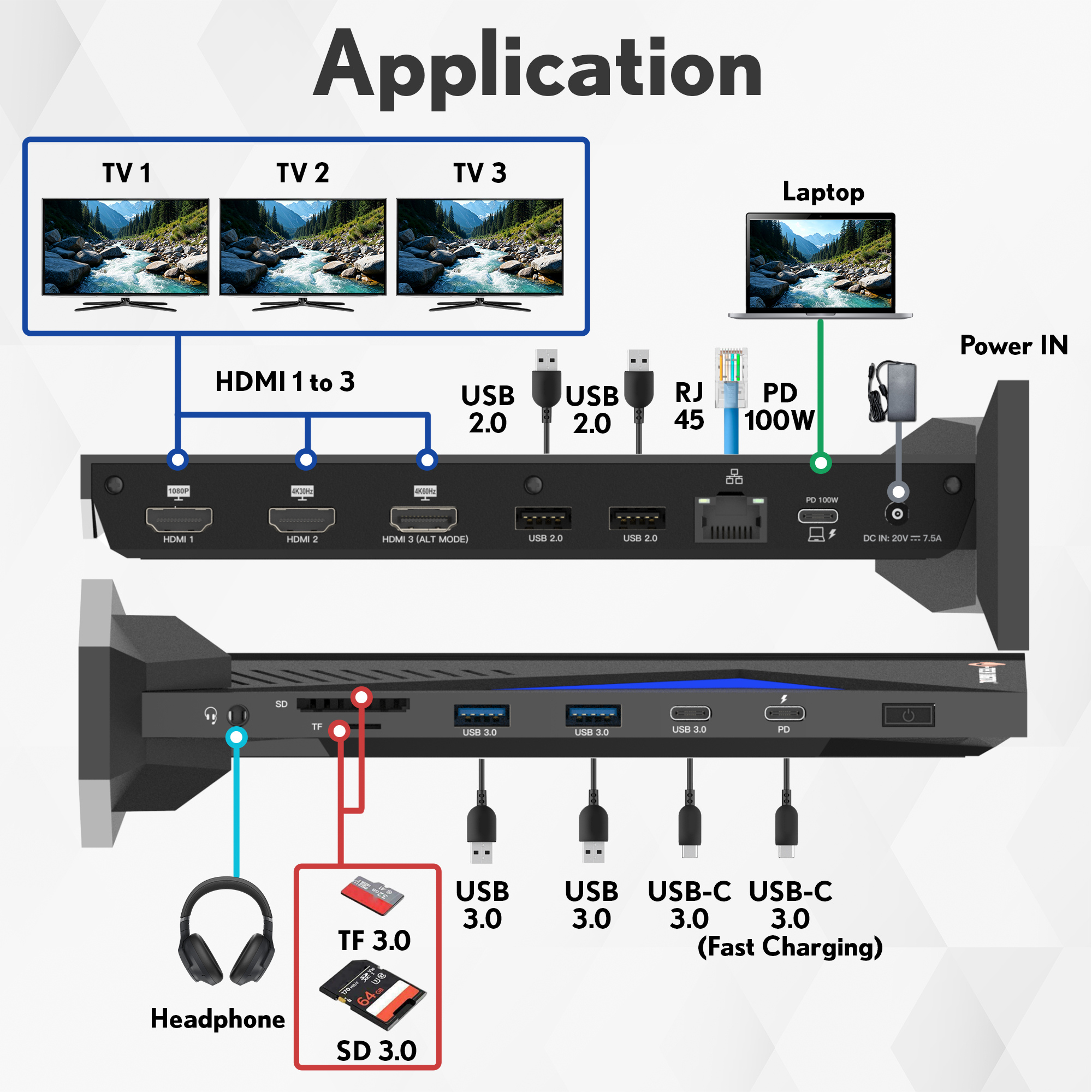

Application

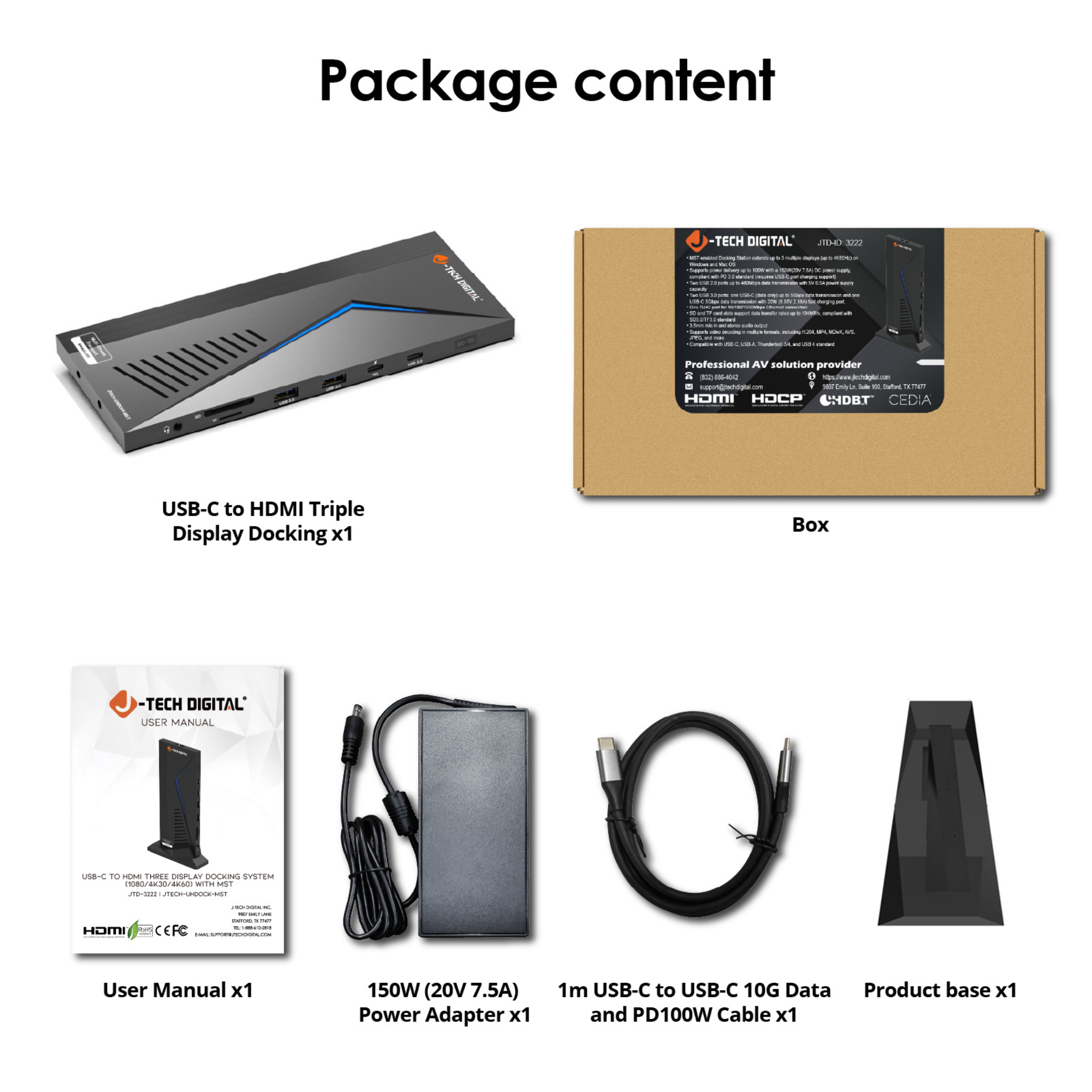

Package List

Category	Name	Version	Size	Format
Manual Name User Manual v1.0	User Manual	1.0	20 MB	pdf

General

Input Ports: 1 x USB-C
Output Ports: 3 x HDMI, 2 x USB 2.0, 2 x USB 3.0, 1 x USB-C Fast Charging, 1 x USB Data Transmission Only, 1 x SD 3.0, 1 x TF 3.0, 1 x RJ45, 1 x 3.5mm
Data Transmission Rate (Max): 5Gbps
Compatibility: Windows 7/8/10/11 and above, Mac OS 10.10.x and above, Android 7.1 and above (Android device only support mirroring mode with resolutions up to 1080P)
Operating Temperature: 5% to 90% RH non-condensation
Power Supply: 150W
Dimensions: 7.8" x 3.07" x 0.93"
Net Weight: 202g

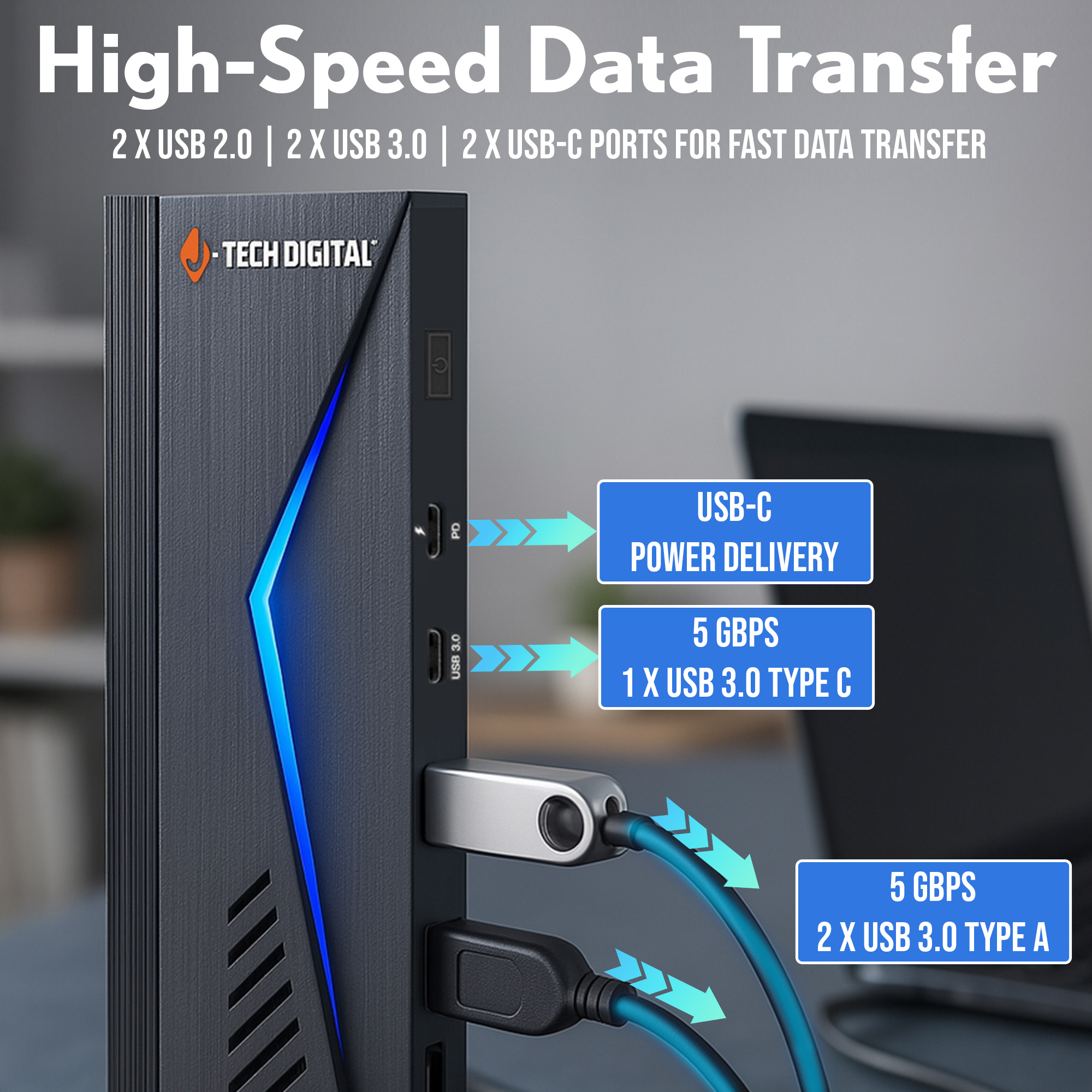

Versatile 14-in-1 Docking Station: Connect your laptop to HDMI 4K displays at 60Hz and 30Hz, 1080p at 60Hz, USB-A 2.0 at 480Mbps, USB-A 3.0 at 5Gbps, USB-C 3.0 (Data Only), USB-C 3.0 with 20W PD Charging, Ethernet at 1Gbps, SD/TF at 104 MB/s, and a 3.5mm 4-Pole TRRS Headphone Jack for seamless integration with external devices. Achieve high-speed data transfers effortlessly.

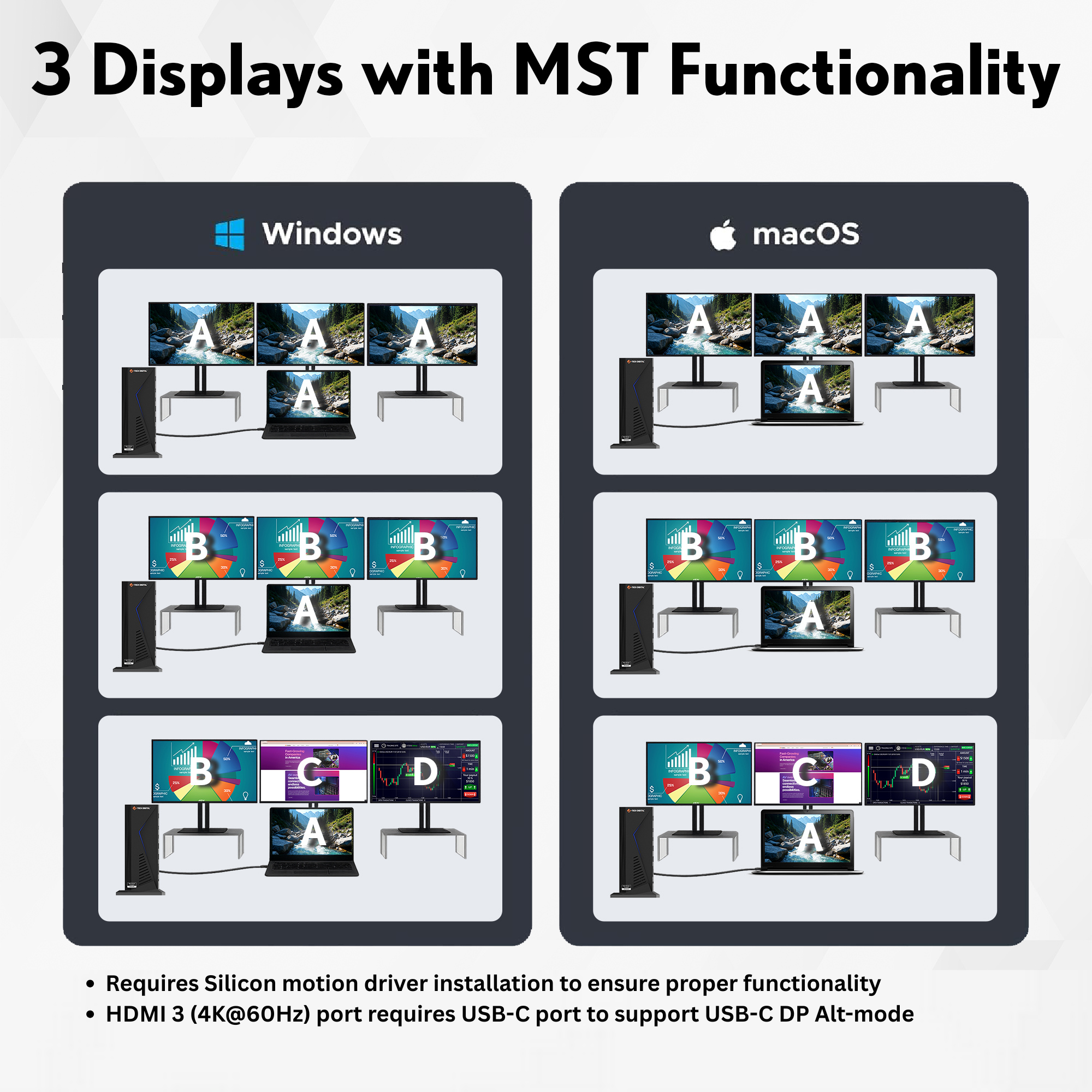

Triple Display Support: Enjoy triple monitor support with HDMI 1080p at 60Hz, HDMI 4K at 30Hz (requires Silicon Motion Driver installation), and HDMI 4K at 60Hz (Plug and Play with DP Alt Mode).

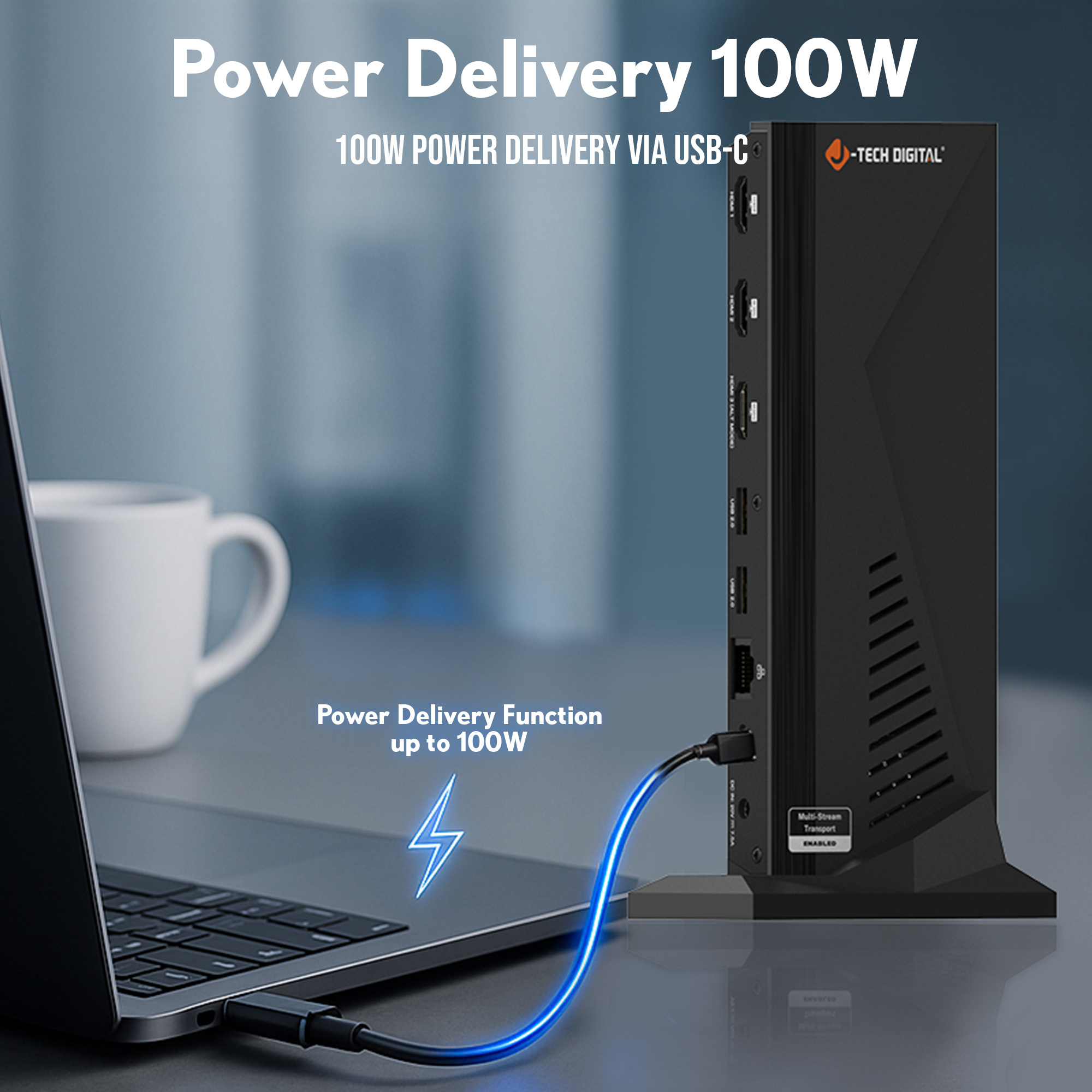

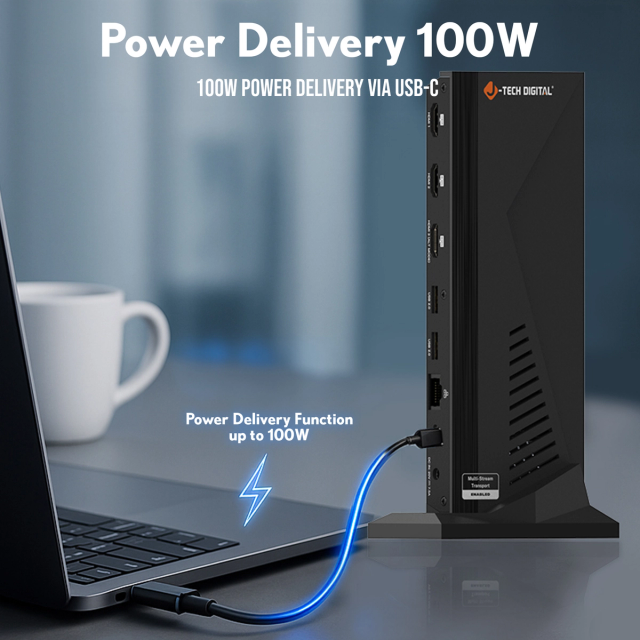

100W PD & 20W PD Fast Charging: Charge your laptop with up to 100W using the included 150W, 20V, 7.5A power adapter. The USB-C 3.0 PD port offers 20W of charging power for smartphones and other connected devices, ensuring comprehensive charging solutions.
Wide Compatibility: Compatible with USB-C, USB-A, Thunderbolt 3/4, and USB 4 standard ports. Supports SST/MST for Windows 7/8/8.1/10 and above, and MacOS 10.10.x and above.
