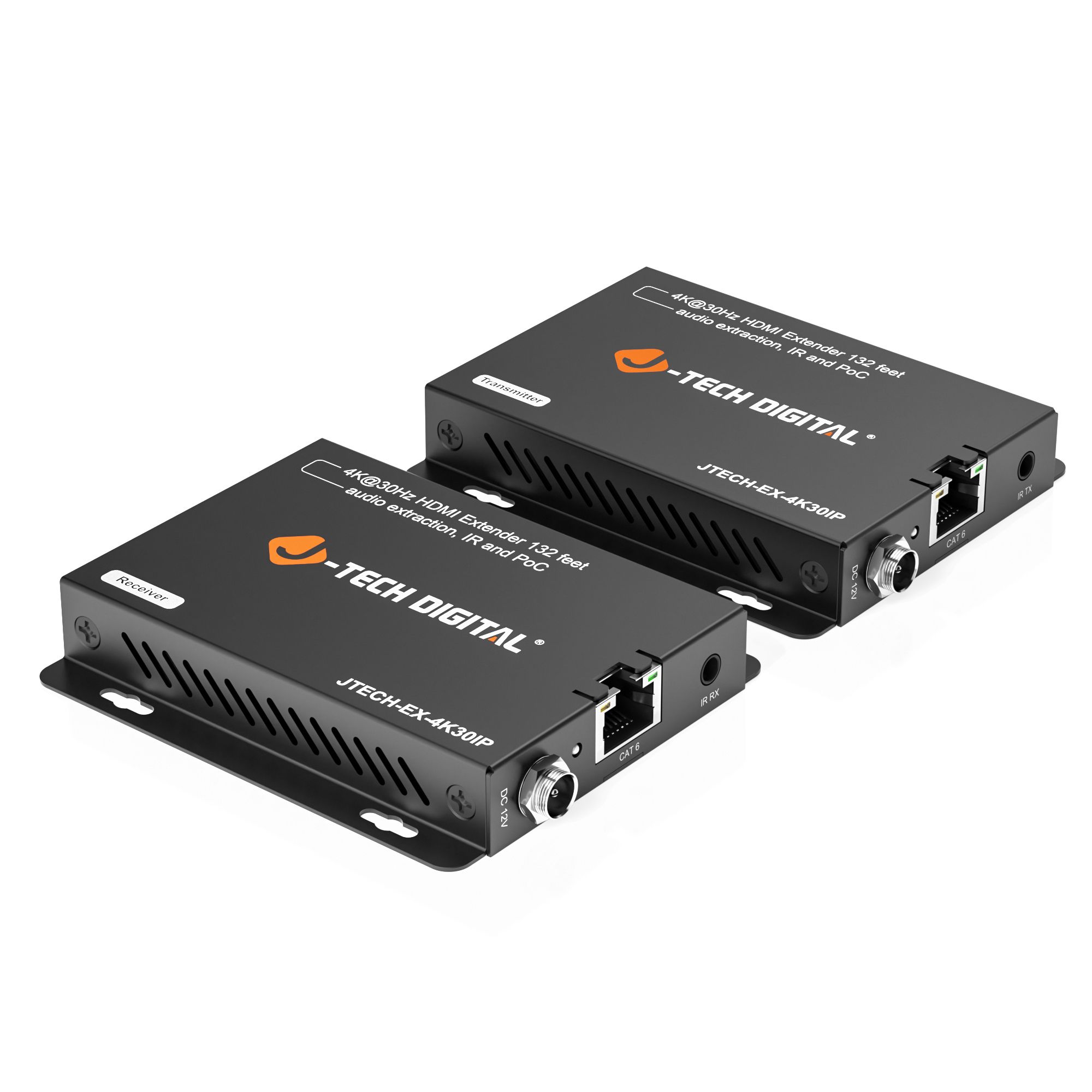

J-Tech Digital 4K 30Hz HDMI Extender Over Ethernet w/ Audio Extraction, IR, PoC
- Manufacturer
- J-Tech Digital
- SKU
- JTD-3183
- Model Number
- JTECH-EX-4K30IP
- Last Updated On
- 5 days ago
Images
Feature
Feature
Feature
Feature
Feature
Feature
Feature
Feature
Resources
| Category | Name | Version | Size | Format |
|---|---|---|---|---|
Manual
| User Manual | 1.0 | 32.5 MB |
Specifications
General
- Transmitter Ports
- 1 x HDMI In, 1 x RJ45 Out, 1 x 3.5mm (Audio Extraction), 1 x IR Tx
- Receiver Ports
- 1 x HDMI Out, 1 x RJ45 In, 1 x IR Rx
- Transmission Distance
- 4K@30Hz up to 132ft., 1080P up to 230ft.
- Vertical Frequency Range
- 50/60Hz
- IR Frequency Range
- 20-60kHz
- Interlaced Resolutions (50 & 60Hz)
- 480i, 576i, 1080i
- Progressive Resolutions (50 & 60Hz)
- 480p, 576p, 720p, 1080p, 4K@30Hz
- Operating Temperature
- 0°~50°C
- Storage Humidity
- 5% ~ 90% RH non-condensation
- Power Supply
- DC 12V
- Power Consumption (Max)
- TX: 1.3W, RX: 1.6W
- Extender Unit Cert.
- FCC, CE, RoHS
- Power Supply Cert.
- FCC, CE, RoHS
- Dimensions
- 91.4 x 81.6 x 15.8 (mm)
- Net Weight
- TX: 132g, RX: 131g
- Material
- Metal
Frequently asked questions
Package Contents
- 1 x Transmitter
- 1 x Receiver
- 1 x IR TX Cable
- 1 x IR RX Cable
- 1 x Power Adapter
Features

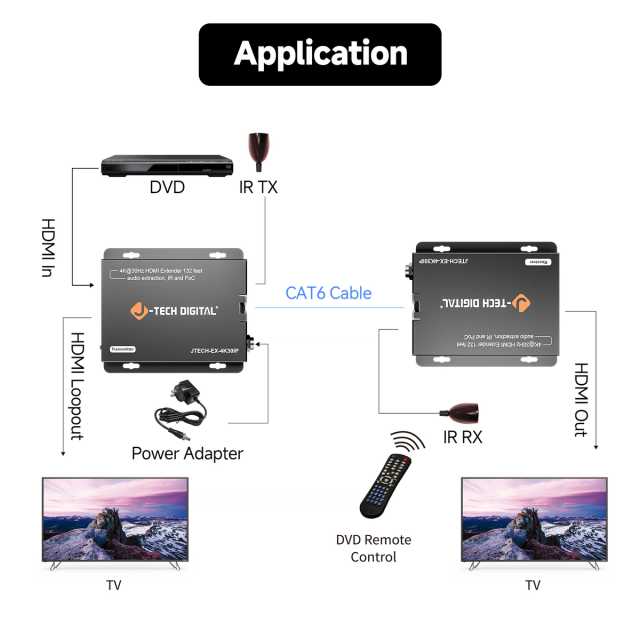

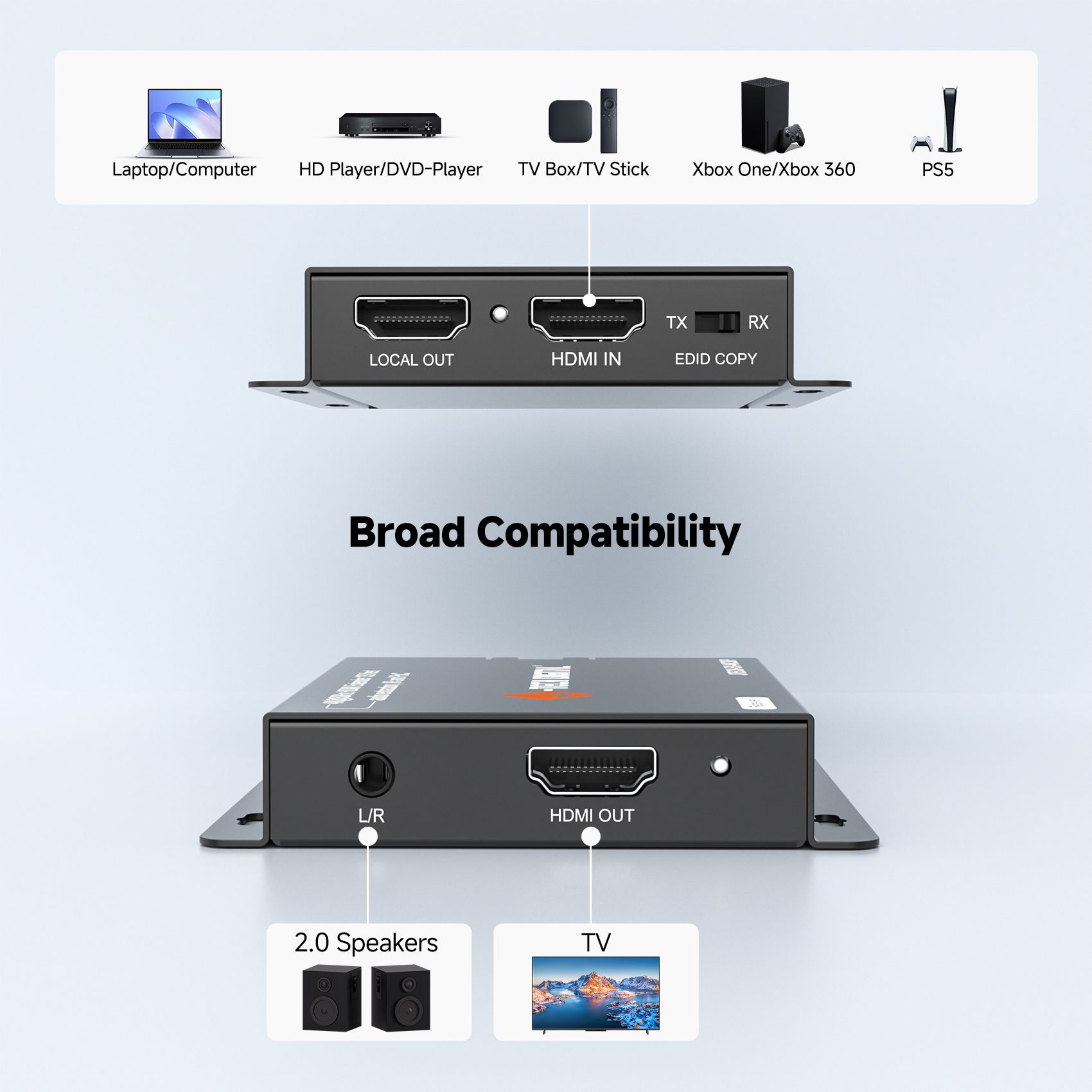

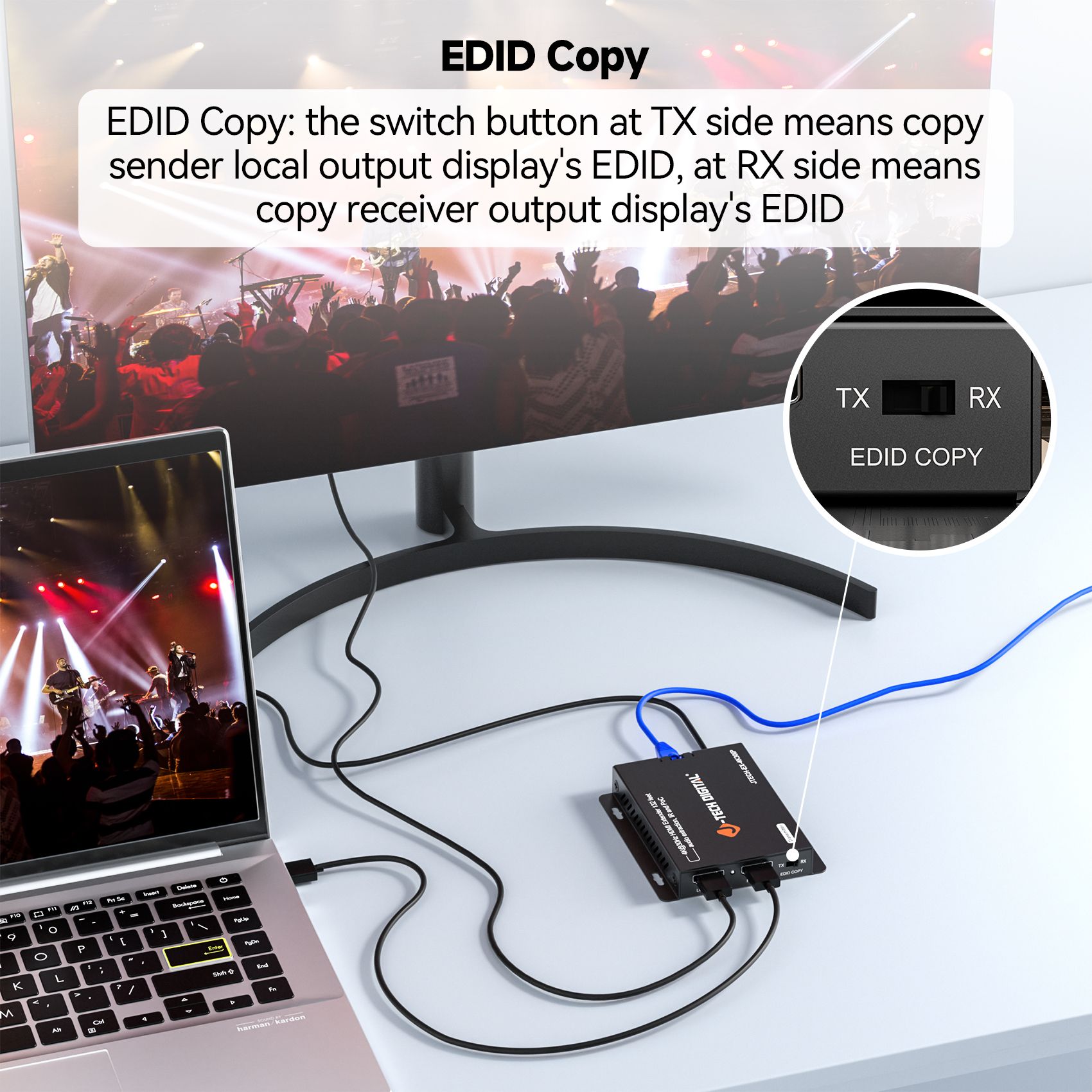

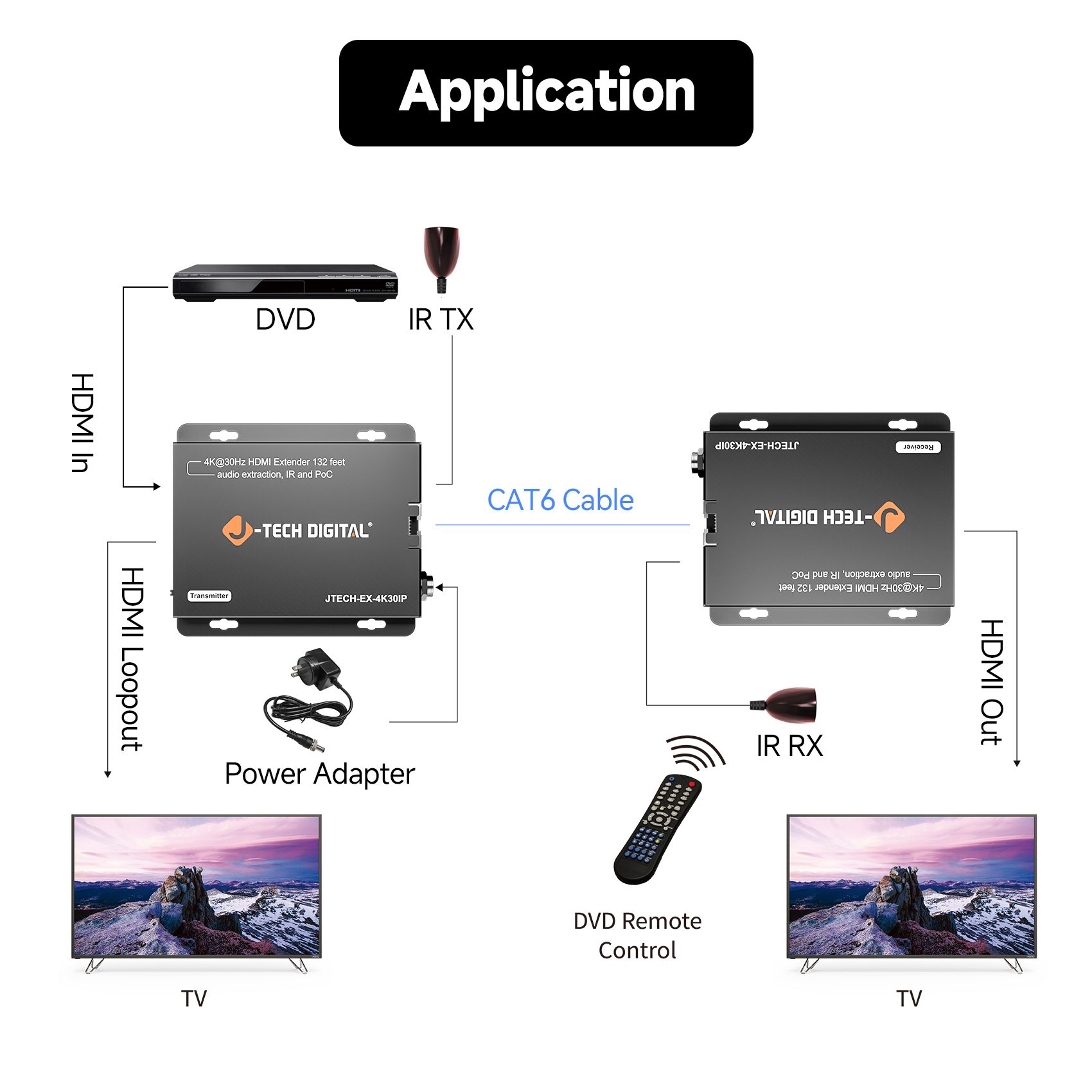

- 4K@30Hz HDMI Extender with EDID Switch: Transmit HDMI signals up to 132 feet in 4K@30Hz and up to 230 feet in Full 1080P using CAT6/7 LAN Cable. Features an EDID toggle switch to help with compatibility between connected source device and display

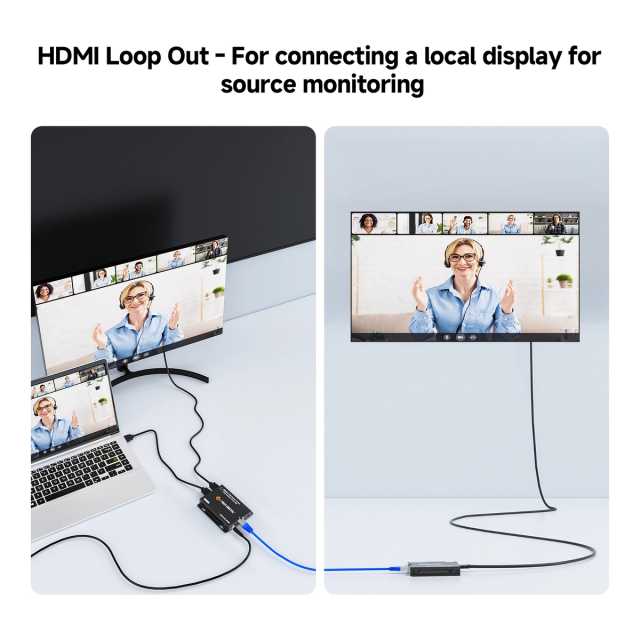

- HDMI Local Loop Out Feature: Simultaneously display content at the transmitter and receiver ends. This HDMI extender transmitter features a local HDMI loop out port for connecting a local display for monitoring
- Power Over Cable (PoC) HDMI Extender: Simplifies setup with power delivered over the Ethernet cable from the transmitter to the receiver (or vice versa), requiring only one power adapter. Plug and play functionality; no drivers needed
- Audio Extraction via 3.5mm Audio Out: This HDMI extender receiver features a 3.5mm audio out port for extracting audio from the signal, and sending it to an external sound system. Note that for audio extraction, the incoming audio signal must be set to stereo
- Free Lifetime Technical Support: All J-Tech Digital products include a one-year manufacturer replacement warranty and free lifetime technical support from our customer support team located in Stafford, TX. Support is available from 9AM – 6PM CST, Mon – Fri
