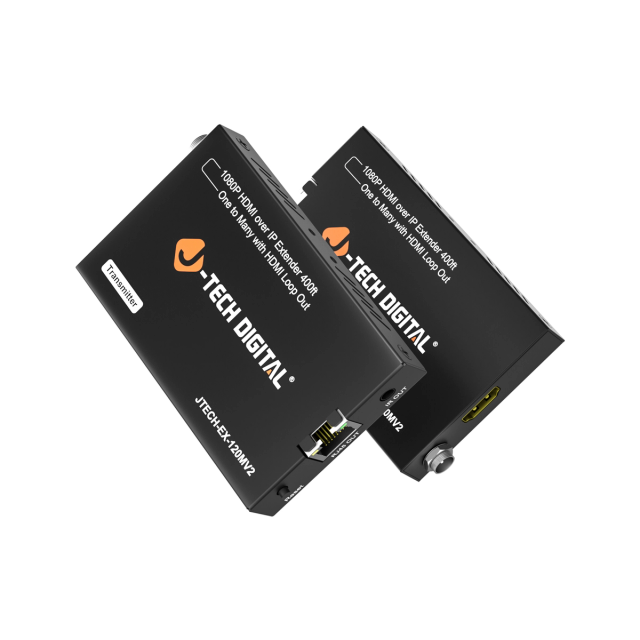

J-Tech Digital 1080P 60Hz HDMI Extender over Ethernet Cat5e/6/7 (400ft.) – One to Many Function via HDMI over IP
- Manufacturer
- J-Tech Digital
- SKU
- JTD-3176
- Model Number
- JTECH-EX-120MV2
- Last Updated On
- about 1 month ago
Images
Product Overview
Product Overview
Product Overview
Product Overview
Product Overview
Product Overview
Product Overview
Resources
| Category | Name | Version | Size | Format |
|---|---|---|---|---|
Manual
| User Manual | 1.0 | 764 kB |
Specifications
Video
- Signal Input
- HDMI Signal
- Input Video Signal
- 0.5 ~ 1.0V p-p
- Output Video
- HDMI Signal
- Transmission Distance (CAT6)
- 120m @ 1080P
- Vertical Frequency Range
- 50 / 60Hz
General
- Operating Temperature
- 0°C ~ 50°C
- Storage Humidity
- 5% ~ 90% RH (no condensation)
- Power Supply
- DC 5V 1A (Per unit)
- Power Consumption
- TX: 2WRX: 1W
- Net Weight
- TX: 134gRX: 132g
Frequently asked questions
Package Contents
- 1 x HDMI Extender Transmitter
- 1 x HDMI Extender Receiver
- 2 x Power Adapters

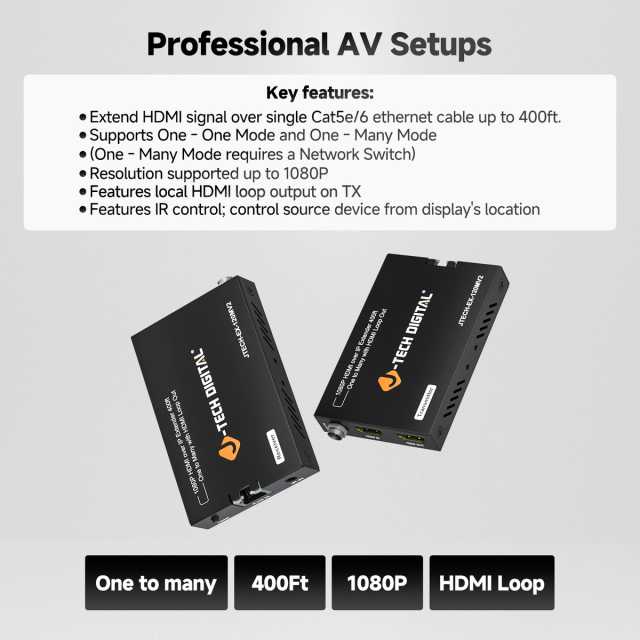

Features

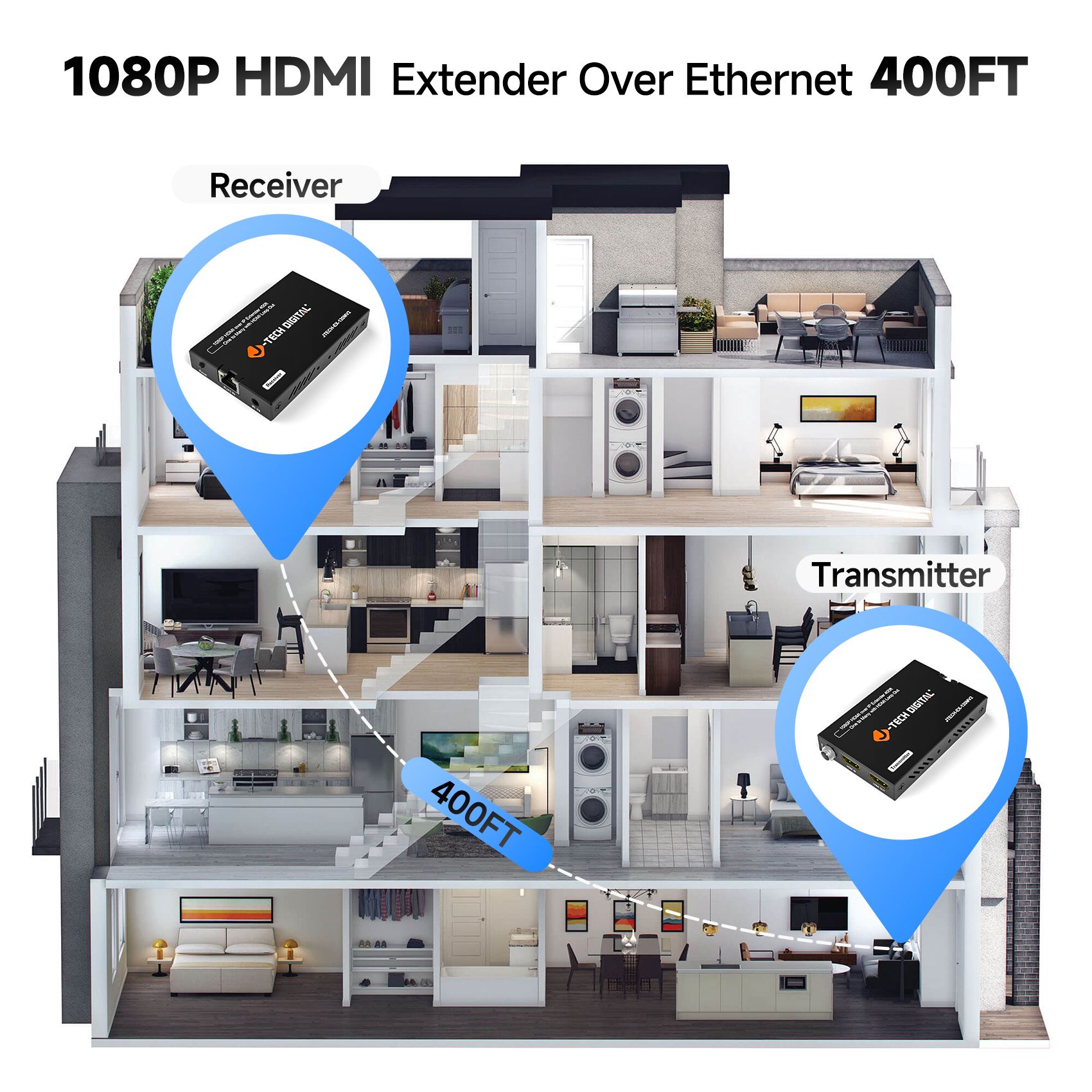

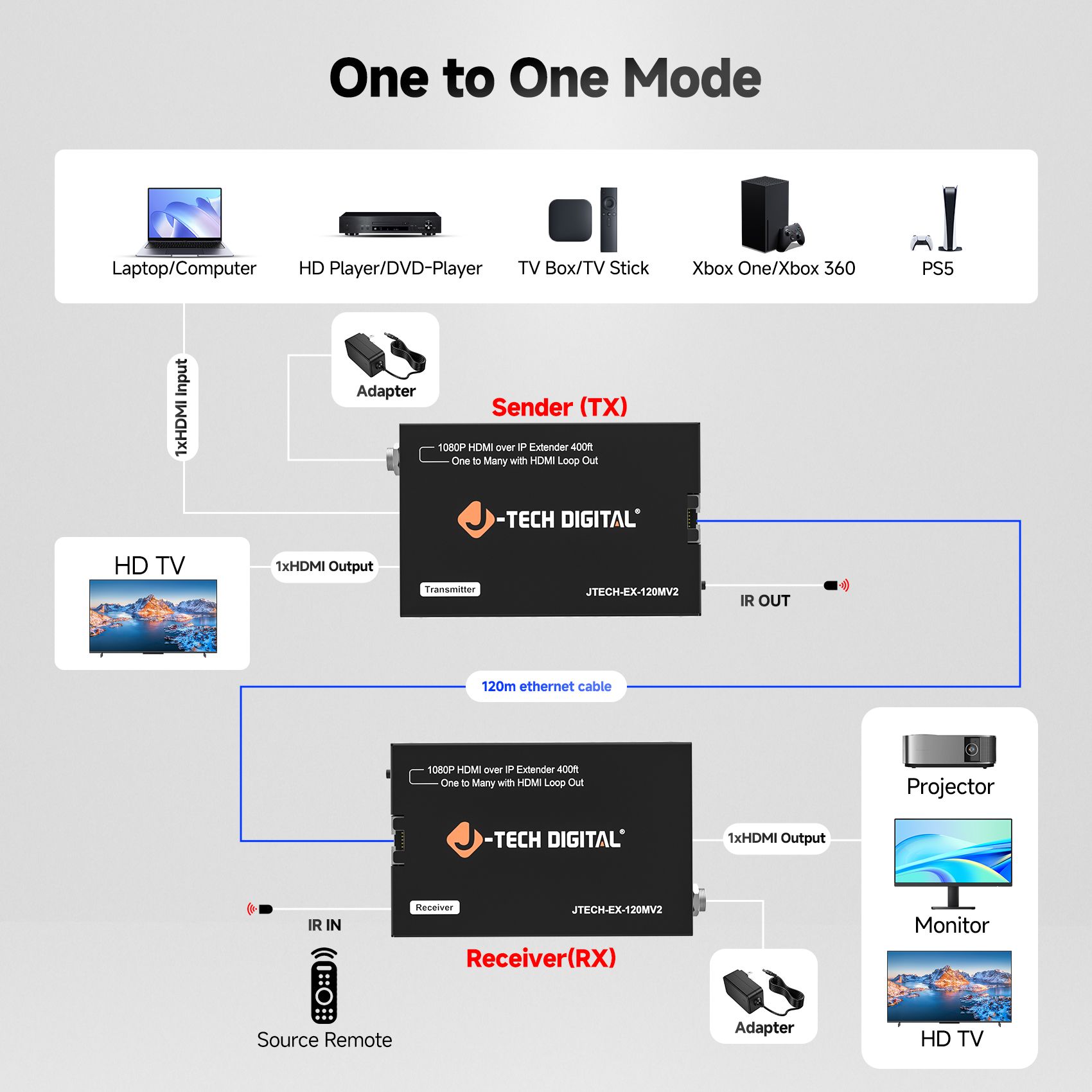

- HDMI Extender over Ethernet Up To 400ft: Transmit full HD 1080p video up to 400ft (120m) over a single Cat6 cable or 660ft (200m) for 720P HD video. Ideal for home theaters, digital signage, classrooms, and conference rooms needing long-range HDMI connectivity

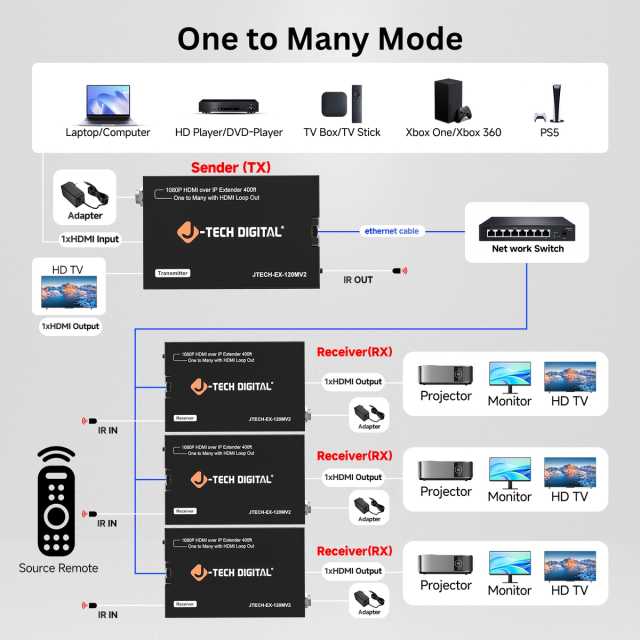

- One-to-Many HDMI Distribution Over LAN: Broadcast one HDMI source to multiple displays over a network with three modes: simple, allocation, and infinite mode. Perfect for video walls, retail displays, security systems, and multi-screen presentations

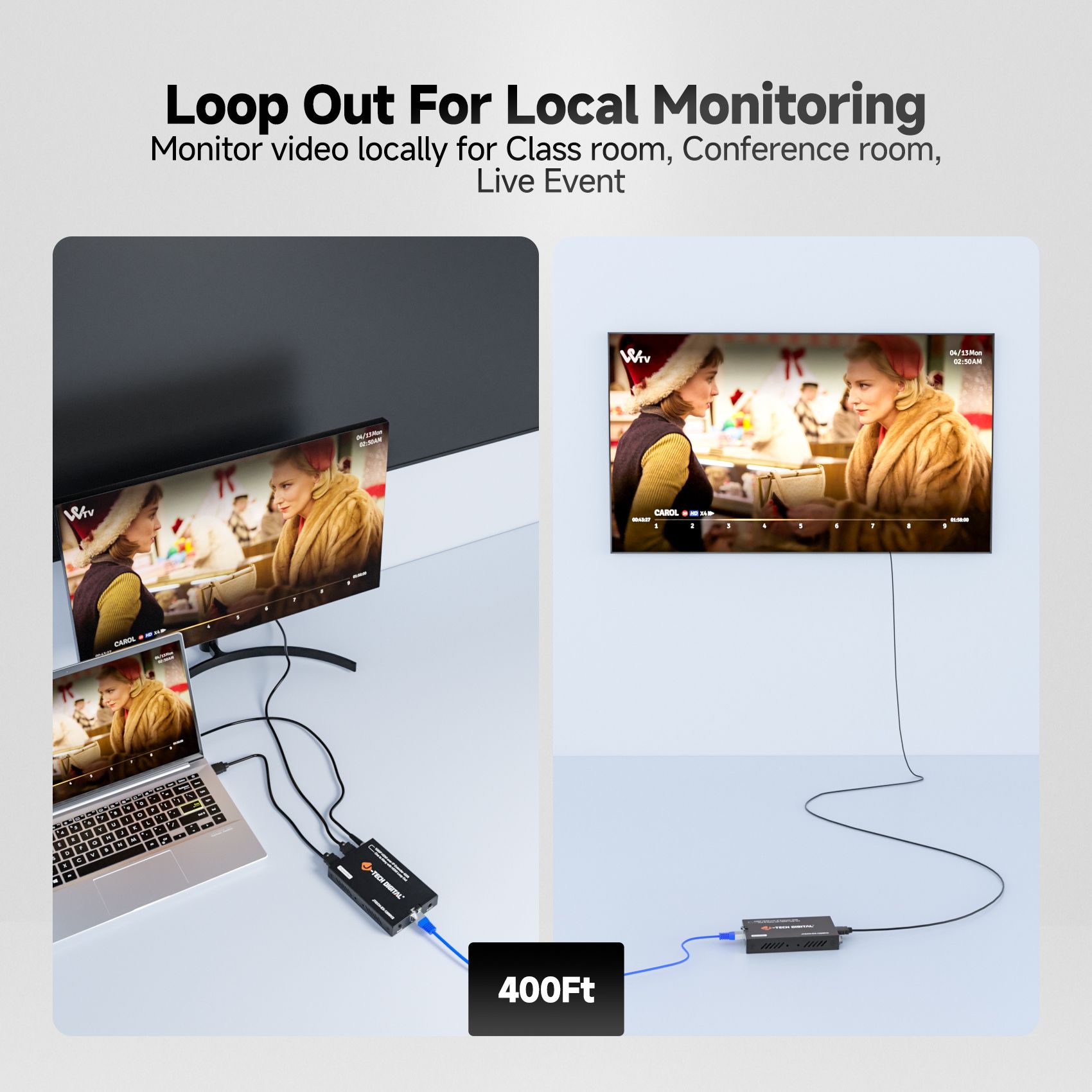

- HDMI Loop-Out for Local Viewing & Monitoring: Includes HDMI loop-out on the Transmitter for simultaneous local display while extending the signal to the Receiver, ensuring real-time monitoring for surveillance, gaming setups, control rooms, and business applications
- High-Performance Video & Network Integration: Supports 480p, 720p, 1080i, and 1080p resolutions, follows TCP/IP standards, and delivers 4.95Gbps total bandwidth for ultra-clear, lag-free video transmission
- Free Lifetime Technical Support: All J-Tech Digital products include a one-year manufacturer replacement warranty and free lifetime technical support from our customer support team located in Stafford, TX. Support is available from 9AM – 6PM CST, Mon – Fri.
