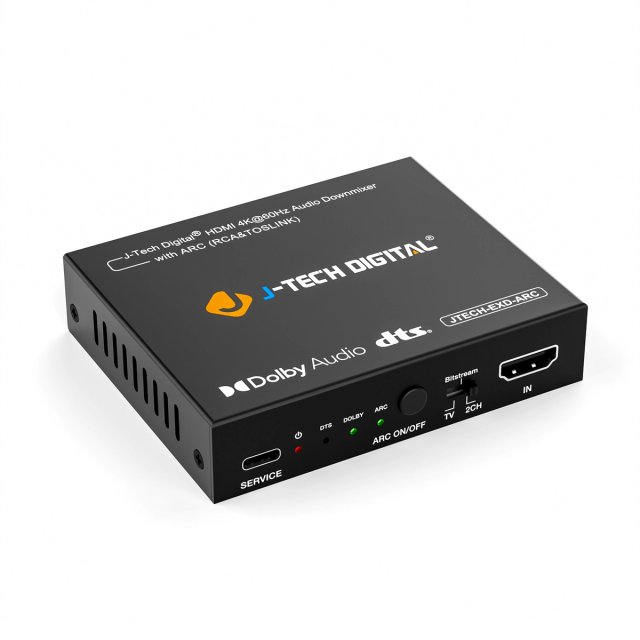

J-Tech Digital 4K 60Hz HDMI Audio Extractor w/ HDMI-ARC & Audio Downmix Function

Manufacturer
J-Tech Digital
SKU
JTD-3146
Model Number
JTECH-EXD-ARC
Last Updated On
about 1 month ago

Images

Usecase

Usecase

Usecase

Usecase

Usecase

Usecase

Usecase

Usecase

Resources

CategorySizeFormat
Manual
Name
User Manual v1.0
4.43 MBpdf

Specifications

Video
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 2.2
HDCP 1.x
Video Bandwidth
18Gbps
Color Space
RGB, YCbCr 4:4:4
YCbCr 4:2:2
YCbCr 4:2:0
Color Depth
8/10/12bit
HDR
HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio
Audio Formats
HDMI OUT: PCM 2.0/5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master, DTS:X
Optical (S/PDIF): PCM 2.0, Dolby 5.1, DTS 5.1
Stereo(L/R): PCM 2.0
General
Input
1 x HDMI IN [Type A, 19-pin female], 1 x SERVICE [USB Type C]
Output
1 x HDMI OUT [Type A, 19-pin female], 1 x L/R AUDIO OUT [RCA], 1 x OPTICAL OUT [S/PDIF]

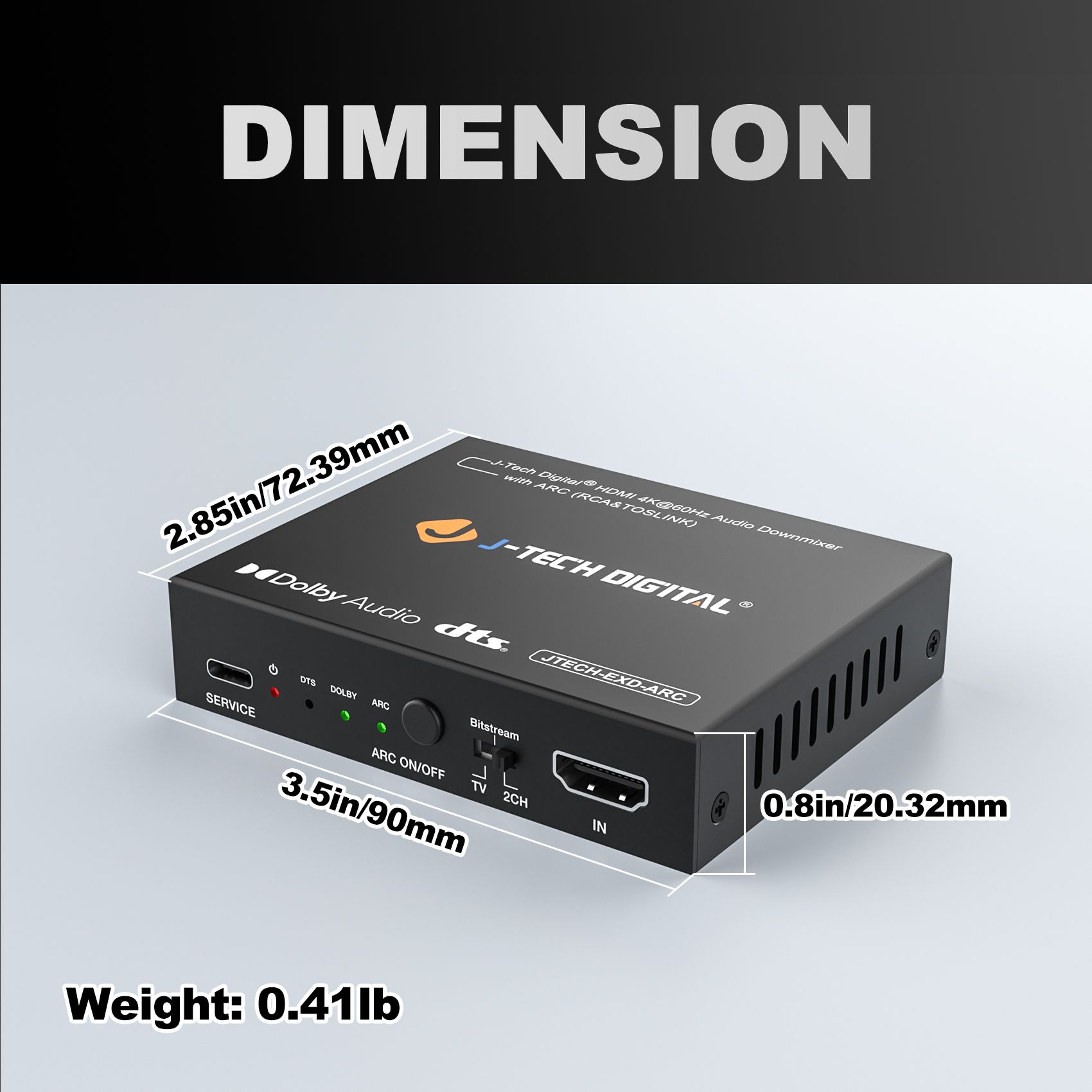

Dimensions
90mm [W] × 72mm [D] × 20mm [H]
Weight
182g
Operation Temperature
0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature
-20°C ~ 60°C / -4°F ~ 140°F

Frequently asked questions

Package Contents

  • 1 x HDMI Audio Extractor
  • 1 x Power Adapter
  • 1 x User Manual

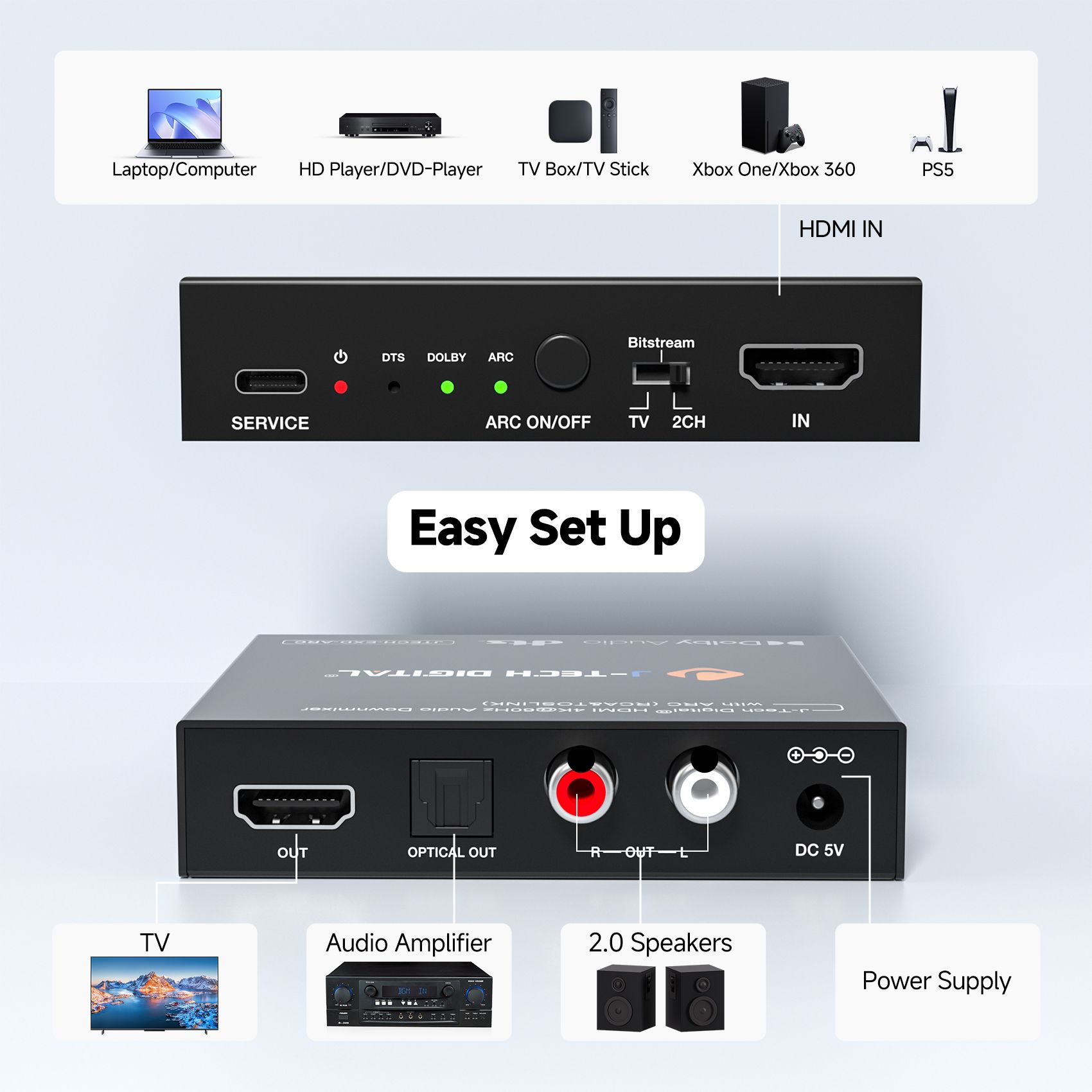

Features

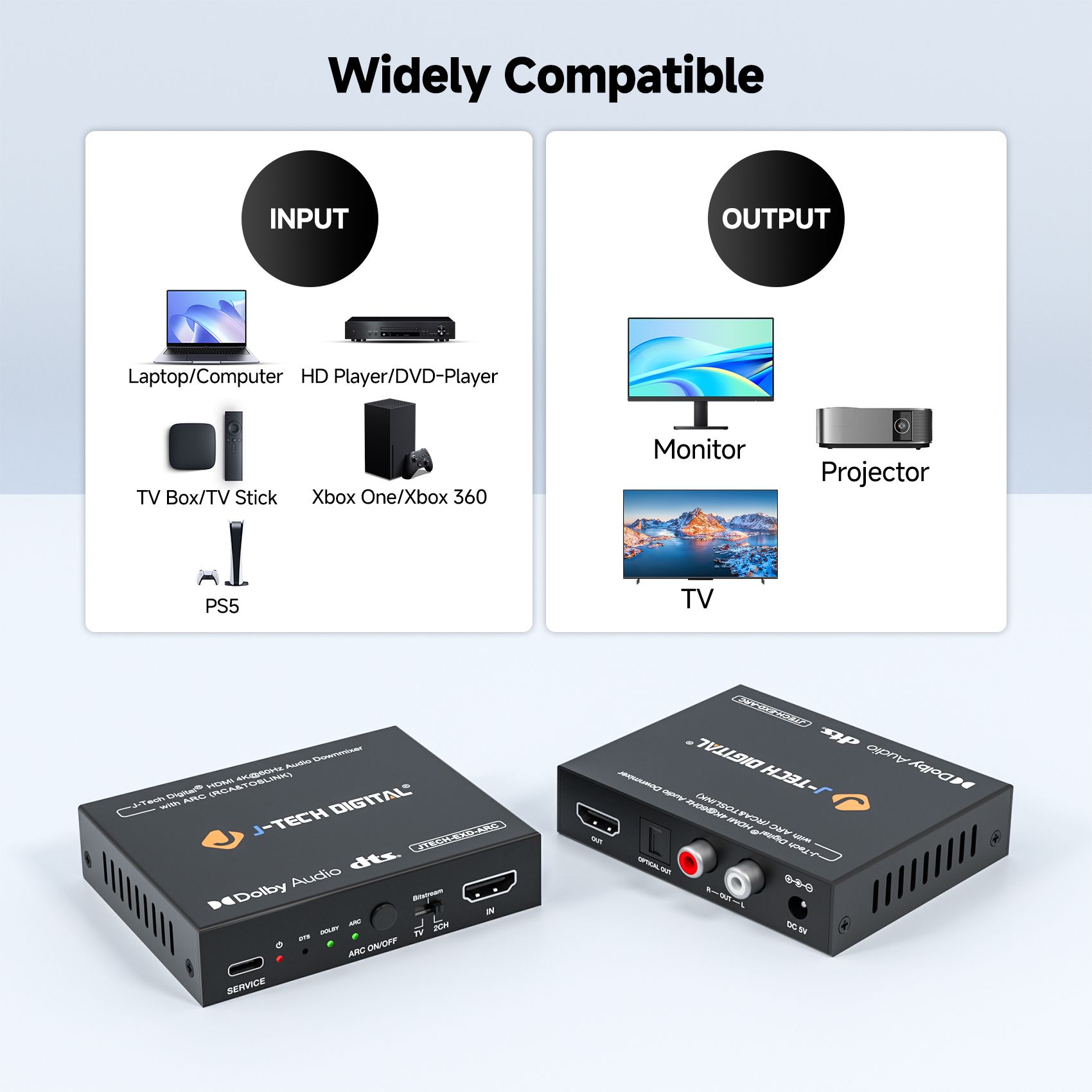

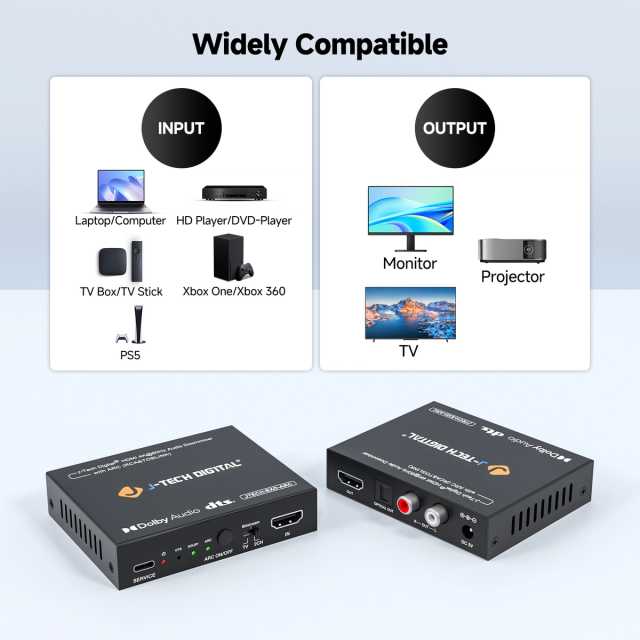

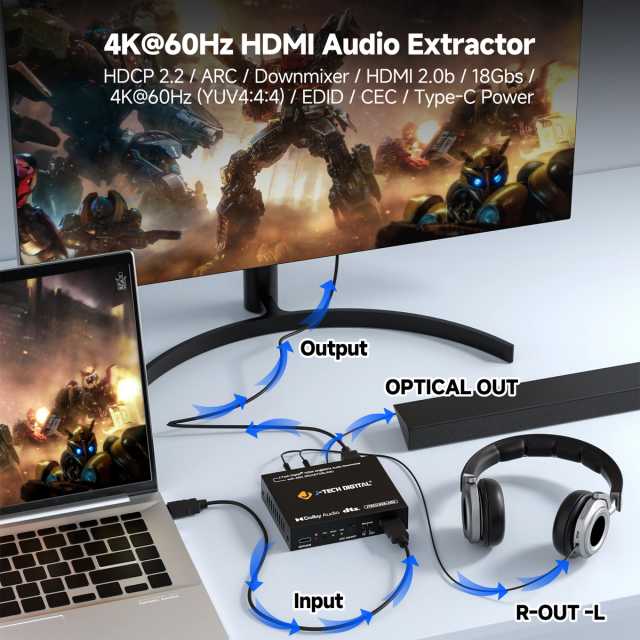

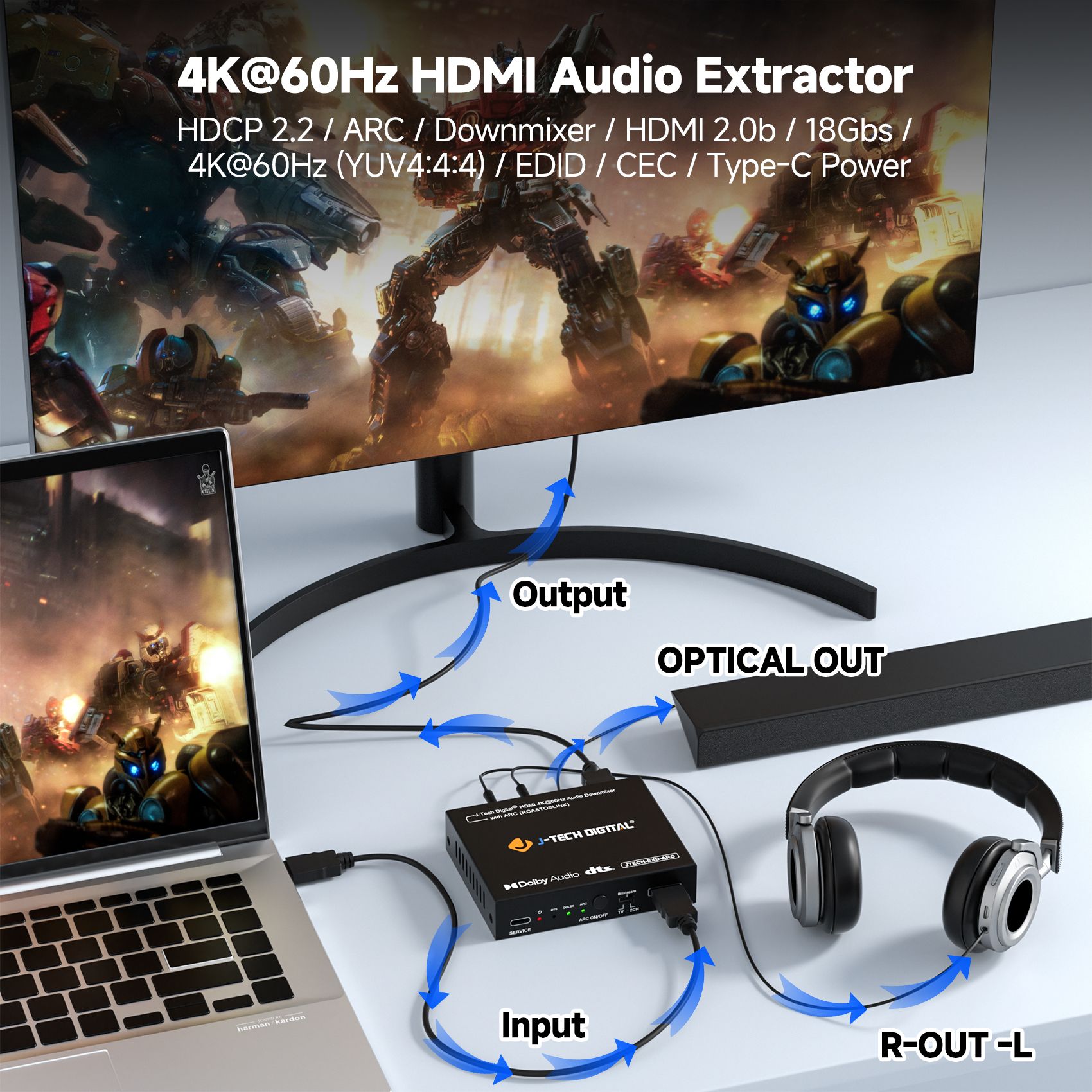

  • HDMI to RCA & Optical Audio Extractor: This HDMI audio extractor helps convert HDMI audio to RCA (L/R) analog or optical (SPDIF) outputs, allowing you to connect an external sound system, speaker, or home theater. Perfect for gaming consoles, Blu-ray players, streaming devices, and more

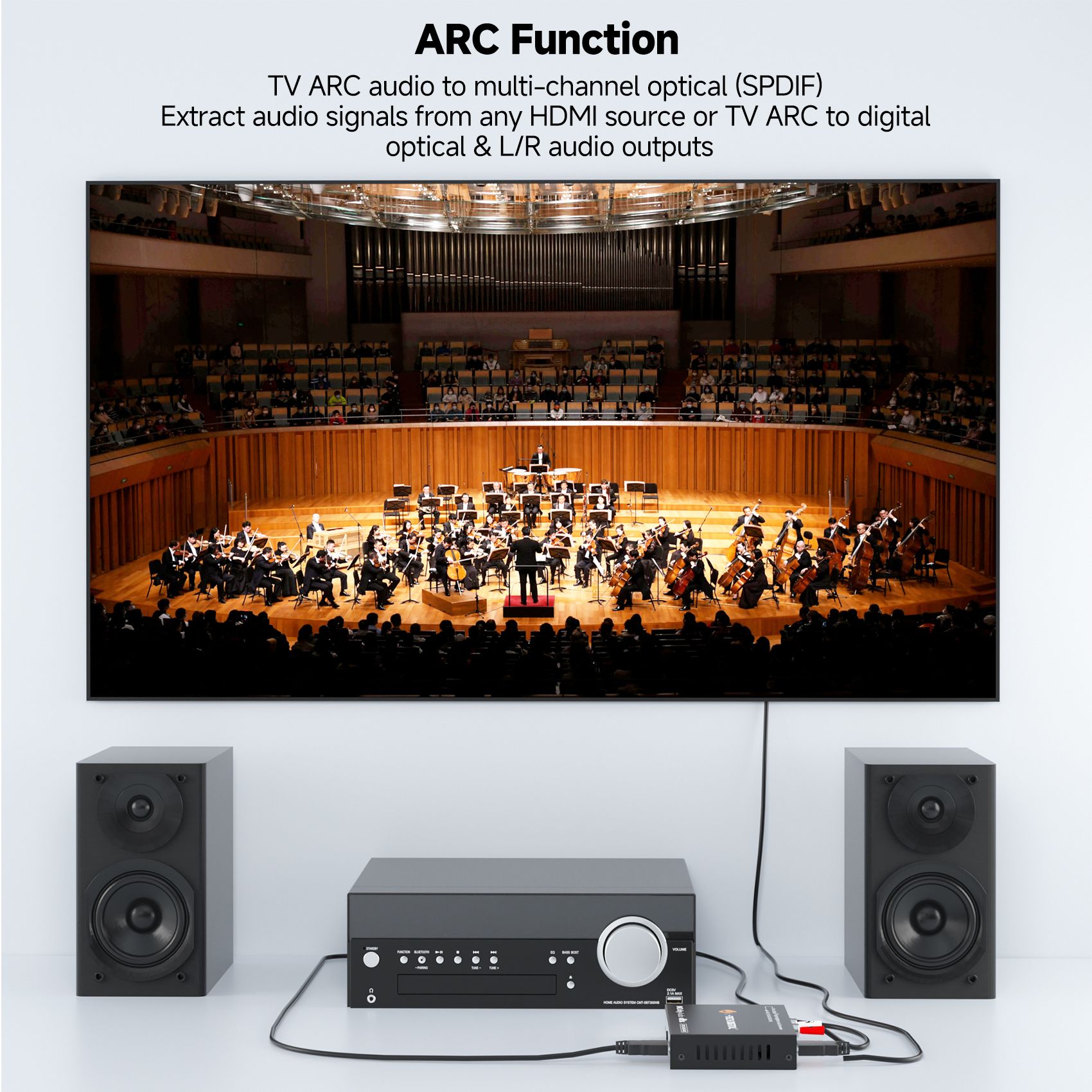

  • HDMI ARC Audio Extractor for Smart TVs: Extract TV audio via HDMI ARC and send it to external speakers, AV receivers, or soundbars using the optical (SPDIF) output. Note: Supports ARC, but not eARC
  • 4K@60Hz Resolution with HDR Support: Enjoy stunning 4K resolution at 60Hz (YUV 4:2:0) with support for HDR, 1080P, and 720P. Works with HDCP 2.2/1.x devices, ensuring smooth compatibility with TVs, projectors, and monitors

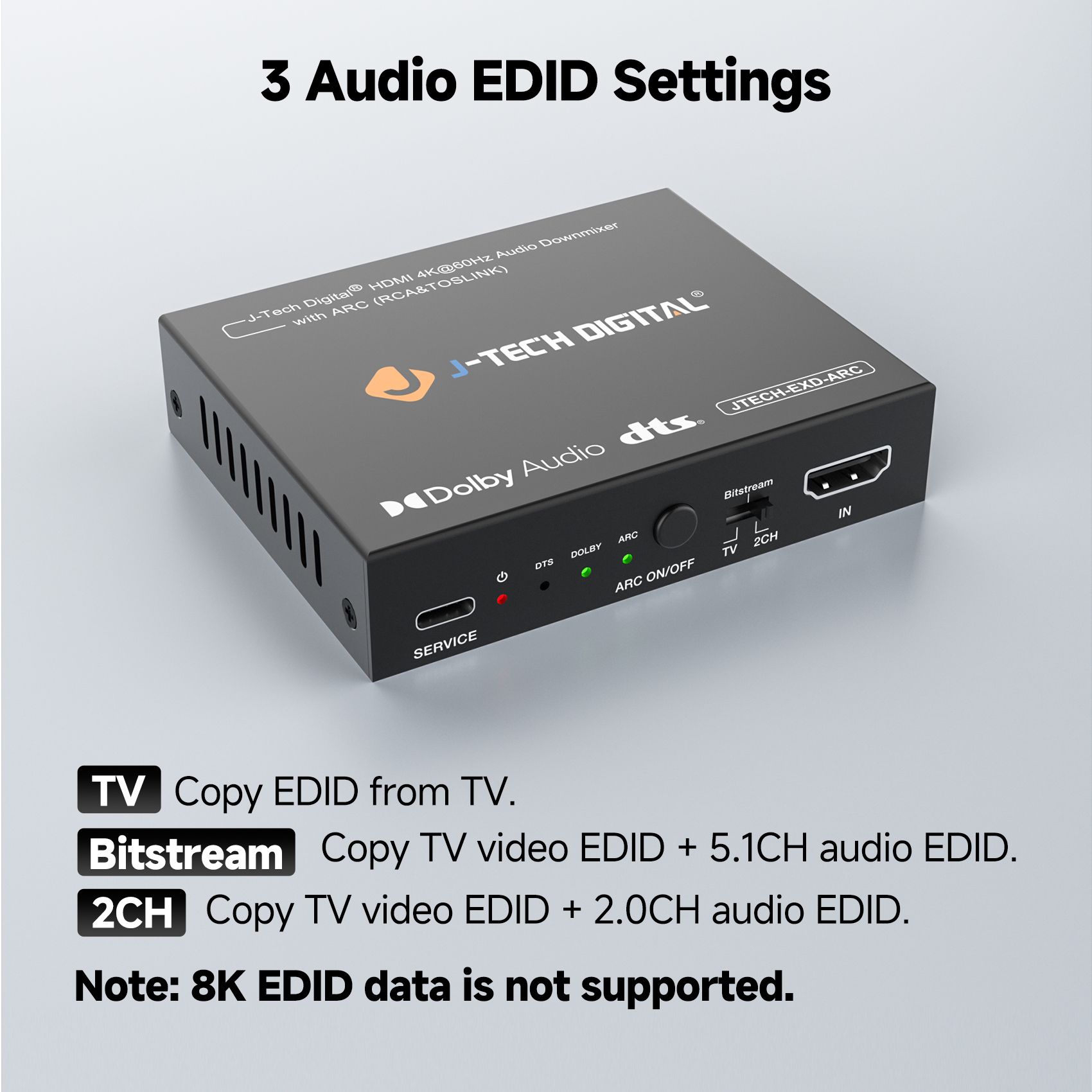

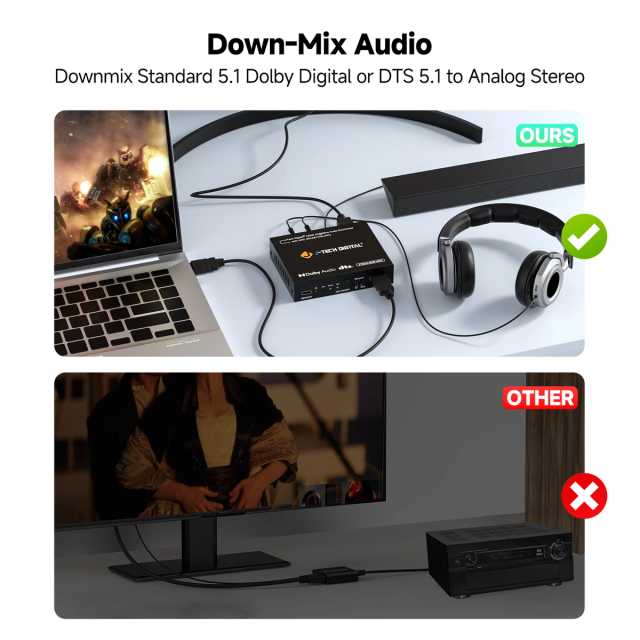

  • 5.1 Audio Downmix & EDID Management: Downmix standard 5.1 audio to stereo output, making it compatible with older speakers. The EDID switch (TV, 2CH, 5CH modes) ensures seamless communication between your source device and display, reducing audio/video compatibility issues
  • Free Lifetime Technical Support: All J-Tech Digital products include a one-year manufacturer replacement warranty and free lifetime technical support from our customer support team located in Stafford, TX. Support is available from 9AM – 6PM CST, Mon – Fri.
