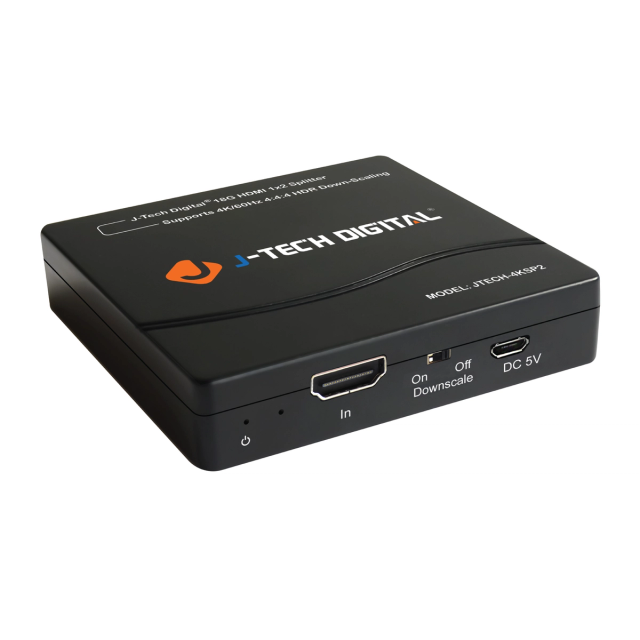

J-Tech Digital HDMI Splitter 1x2 4K 60Hz
- Manufacturer
- J-Tech Digital
- SKU
- JTD-3009
- Model Number
- JTECH-4KSP2(new)
- Last Updated On
- 10 months ago
Images
Product Overview
Product Overview
Product Overview

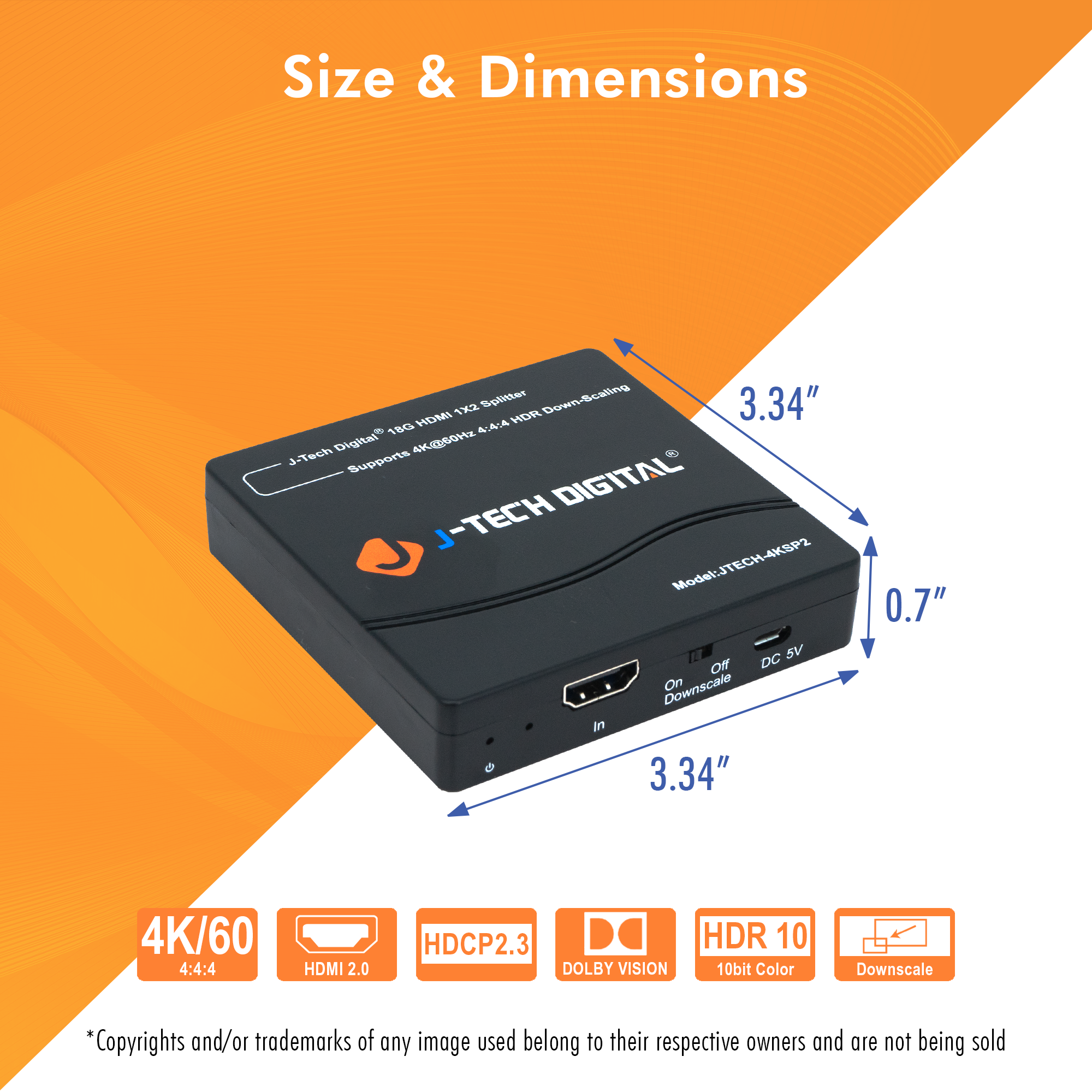

Product Dimension

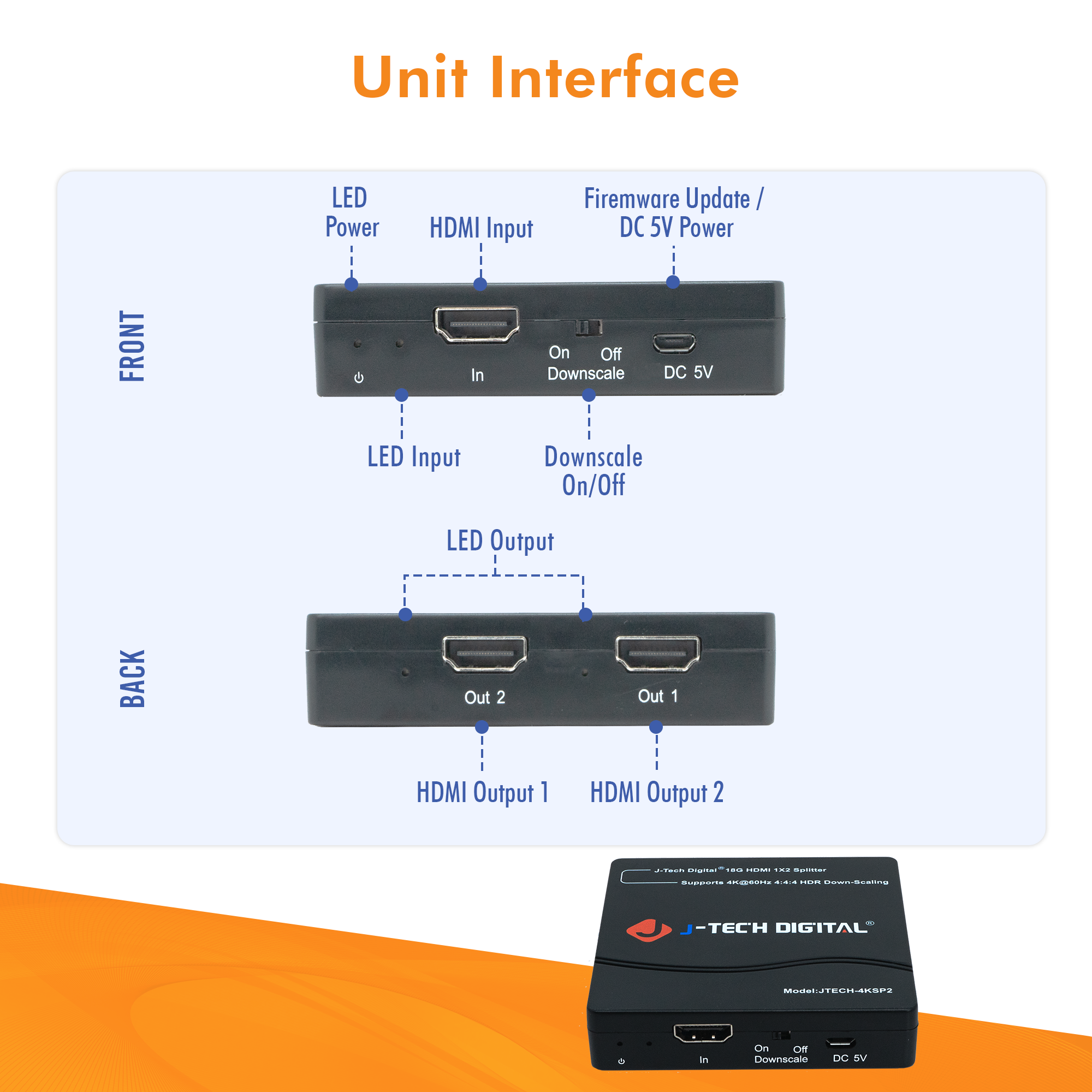

Product Interface

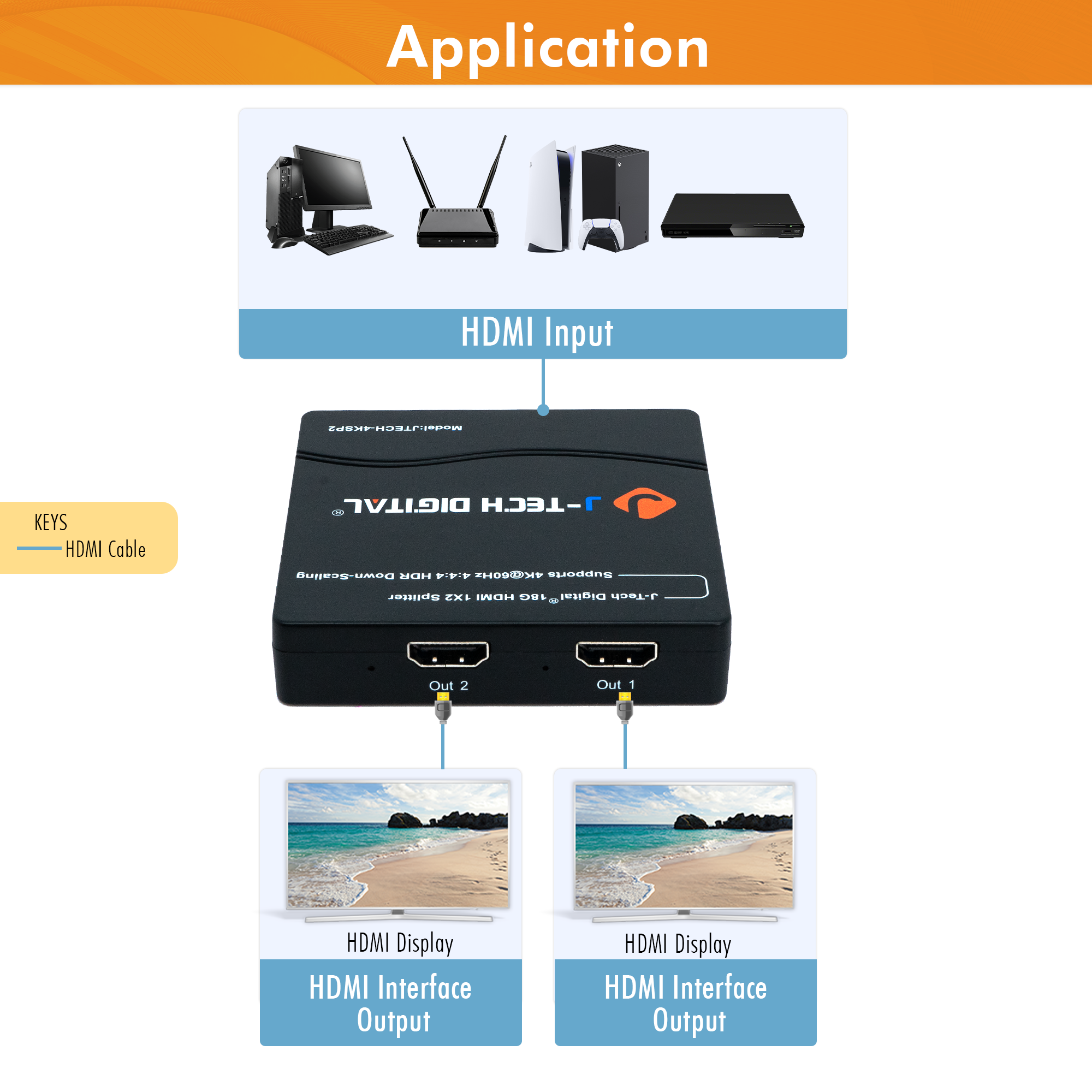

Application
Package List
Resources
| Category | Name | Version | Size | Format |
|---|---|---|---|---|
Manual
| User Manual | 1.0 | 748 kB |
Specifications
Video
- Input
- 1 x HDMI
- Resolution
- Up to 4K@60Hz 4:4:4 8bit
- HDMI Standard
- 2.0
- HDCP Version
- Up to 2.3
- Output
- 2 x HDMI
- HDMI Output Resolution
- Up to 4K@60Hz 4:4:4
Communications
- Control
- 1 x Micro-USB port
- HDMI 2.0 Cable Length
- 4K@60Hz 4:4:4 ≤ 5m4K@60Hz 4:2:0 ≤ 10m1080p ≤ 15m
General
- Operation Temperature
- -10℃ ~ +55℃
- Storage Temperature
- -25℃ ~ +70℃
- Relative Humidity
- 10%-90%
- Power Supply
- Input:100V~240V ACOutput: 5V DC 1A
- Power Consumption
- 1.8W
- Dimension (W*H*D)
- 85mm x 85mm x 18mm
- Net Weight
- 70g
Frequently asked questions

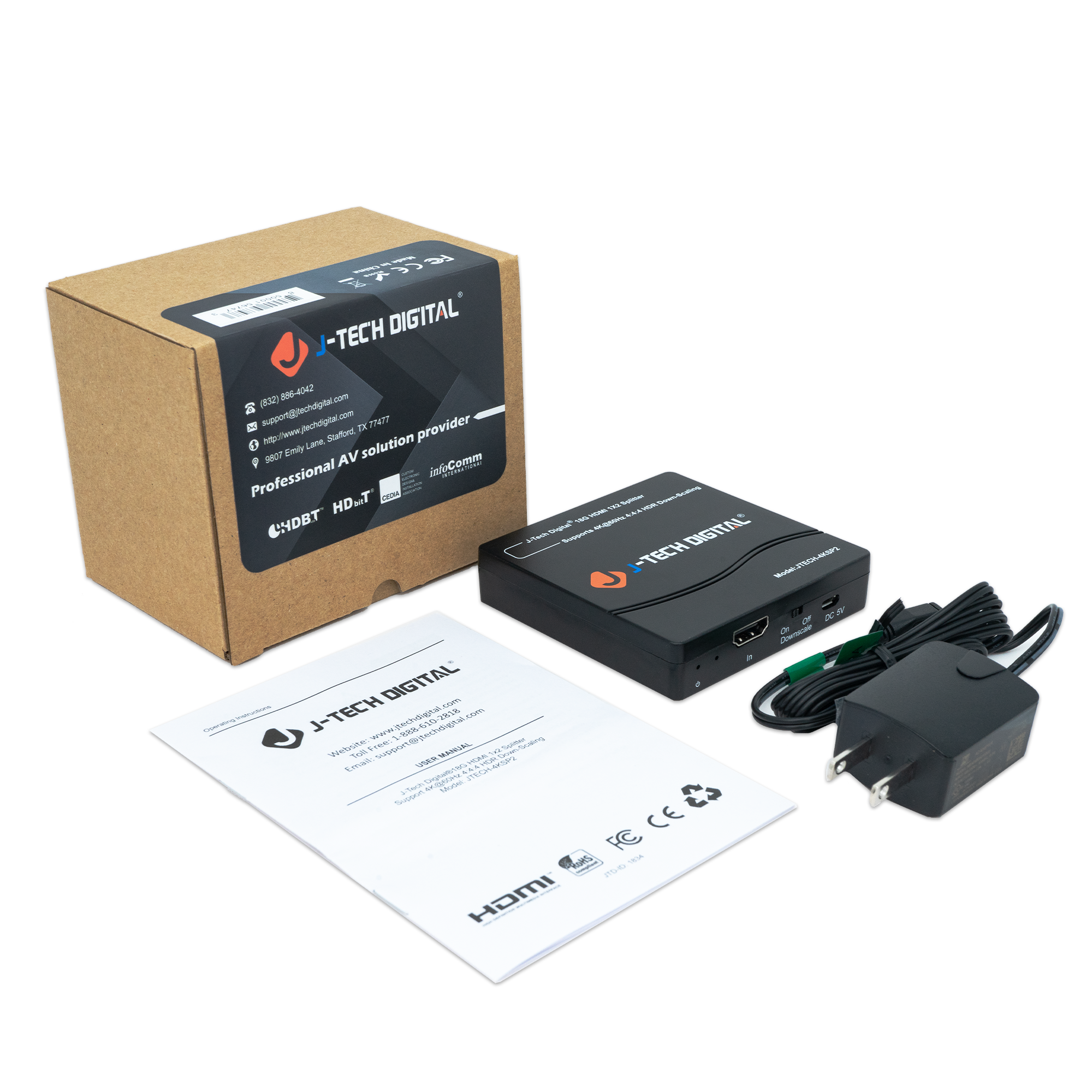

Package Contents
- 1 x HDMI Splitter
- 1 x 5V/1A DC Adapter
- 1 x User Manual

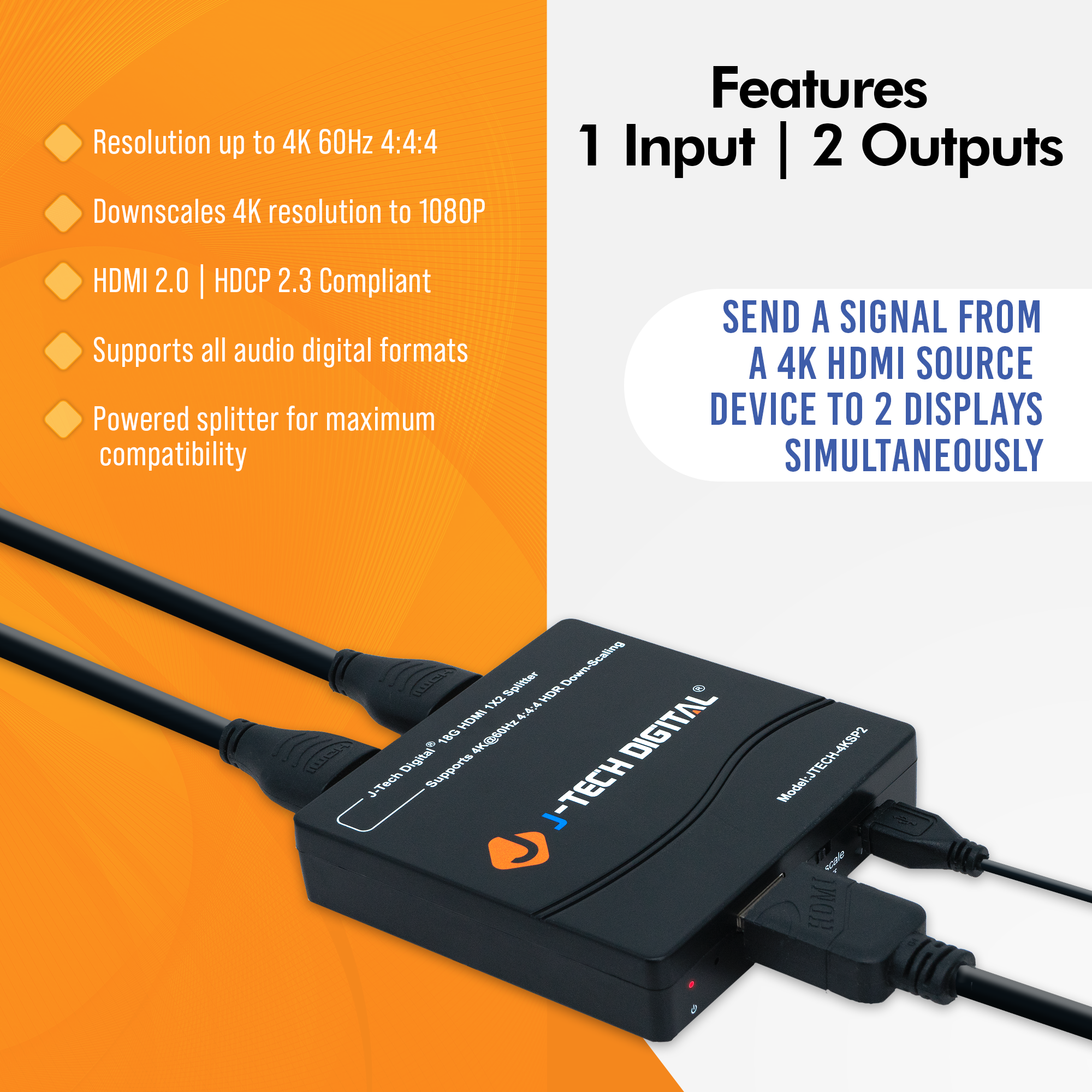

Features
- Simultaneously displays an Ultra Hi-Def source on to two Ultra-HD displays
- Resolutions up to Ultra-HD 4Kx2K(3840x2160@60Hz YUV 4:4:4 )
- Can downscale 4K signals to 1080p signals (Depending on HDCP version of connected display)
- 3 different EDID modes
- HDCP2.2/1.4 Compliant
- LPCM 7.1, Dolby TrueHD® , Dolby Digital+® , Dolby Atmos® and DTS-HD Master Audio®
- Supports 3-D and 36-bit Deep Color
- CEC passthrough on output port 1
- Bandwidth 18Gbps
- HDR-10
- Firmware upgrades available via Micro-USB Por
